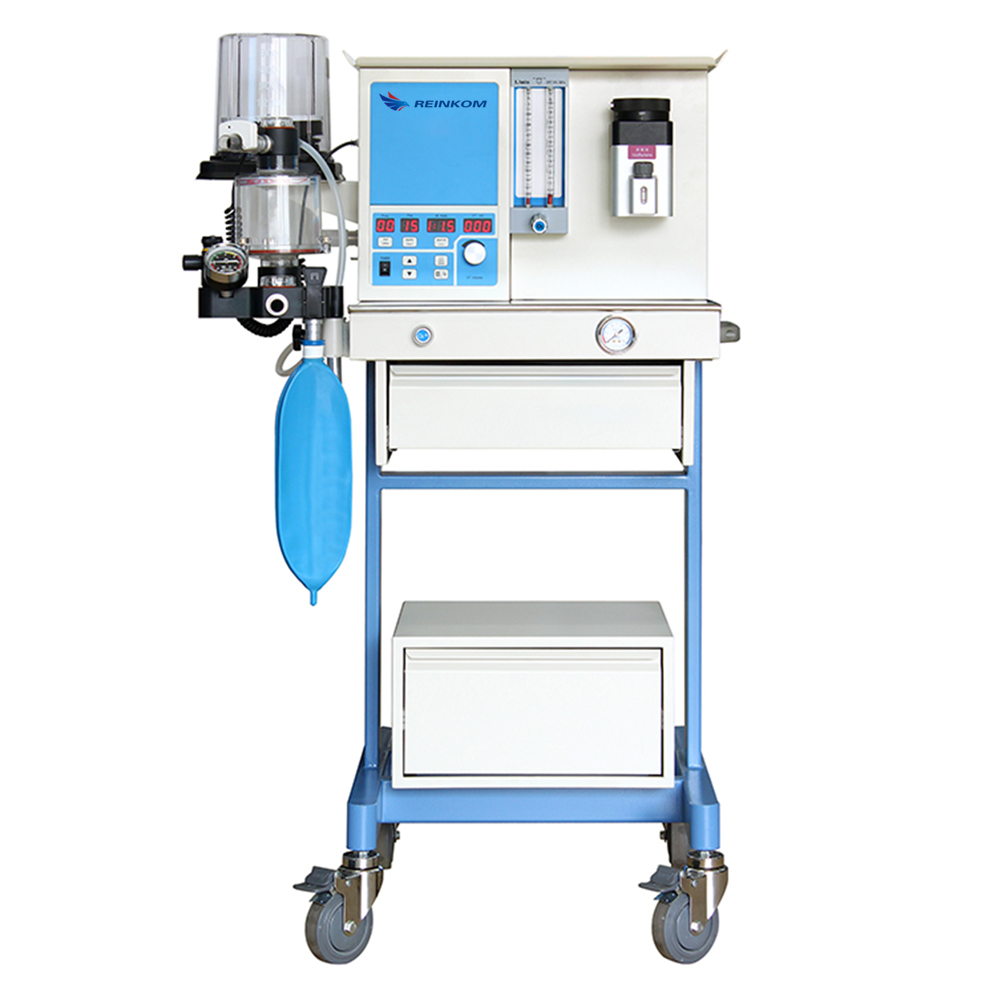

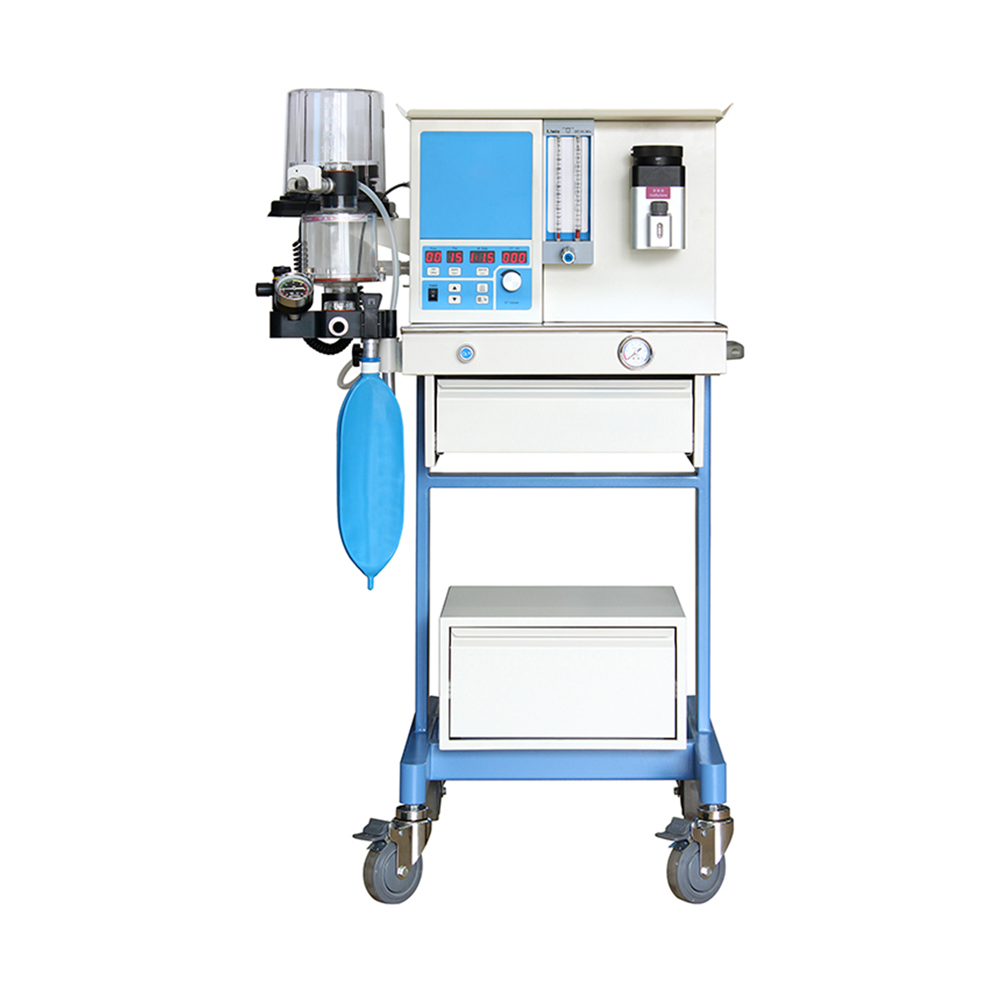

Anesthesia Machine RK-M2000A+

Universal Anesthesia Machine

Integrated design, compact structure, easy to move

Stainless steel countertops, never rust, reduce maintenance costs

High luminance LED display

Main Unit:

·Working mode:

For the closed system, half-closed system and half-open system

·Application: Adult, Pediatric

·Low gas supply alarm: when O2 supply pressure is over low, the machine will arise > (longer than)  7 seconds audible alarm.

·High pressure limitation: when airway pressure is higher than pre-set figure,the machine will     automatically start

protection function. The airway pressure will stop increasing   (not increase any more) to keep patient safe.

·Low pressure protection: when O2 gas supply pressure is lower than 0.1MP.the machine will automatically cut off N2O supply.

·When power supply fails, audible and visual alarms will arise.

·O2 Flush: 25L/min~75L/min

·Gas Supply: O2: 0.28MPa~0.6MPa N2O: 0.28MPa~0.6MPa

·Power supply: AC 220V, 50 Hz

Flowmeter:

·O2/ N2O two tubes Flowmeter (0 ~ 10L/min)

·O2/ N2O linkage system, make sure the O2 concentration > 25%

Anesthesia Ventilator:

·Bellow for Adult 1 piece, Optional: Bellow for Pediatric

·Pneumatically driven and electrically controlled

·Monitoring: Tidal volume, Frequency; I/E Ratio, Peak airway pressure, Waveform (P-T)

·Respiratory modes: Manual, IPPV, SIGH,SIMV/f/2,SIPPV

·Tidal volume:0,50~ 1500mL

·Respiratory frequency:2~ 99bpm

·I:E:5:1 ~ 1:8 (adjustable)

·PTRiG: -2~ OkPa

·High pressure limitation:2 ~ 6kPa

·Low pressure limitation:0 ~ 2kPa

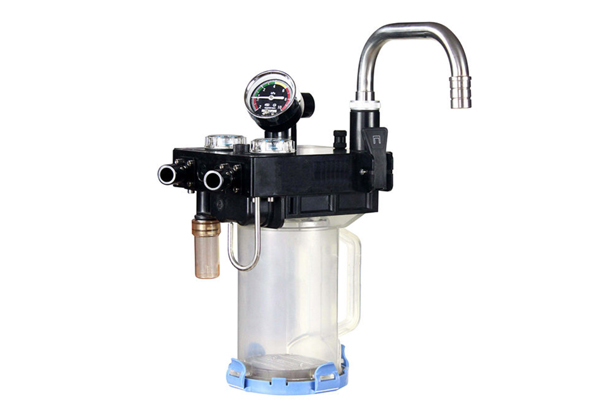

Circle Absorber:

·Integrated design, with APL valve, Pressure gauge, etc.

·Can be high temperature sterilized. The canister is around 1 L.

Anesthesia Vaporizer:

·High precise Anesthesia Vaporizer (Enflurane, Halothane, Isoflurane, Sevoflurane)

·Sevoflurane adjustment scope: 0~ 8% Vol;

·Enflurane, Halothane, Isoflurane adjustment scope: 0~ 5%Vol

·Automatic compensation of flow, temperature and pressure

·Self-lock and interlock

·Volume:>180mL
