Reinkom Medical Instruments Co., Ltd
A World-Leading Supplier Of Medical Solutions
Medical Gas Insufflator
- Precise pressure maintenance, high flow supply
- Real-time monitoring of pressure, flow rate, and total gas volume
- Intelligent and automated precision control
Application Department
laparoscopy
Leave A MessageLive ChatProduct Introduction

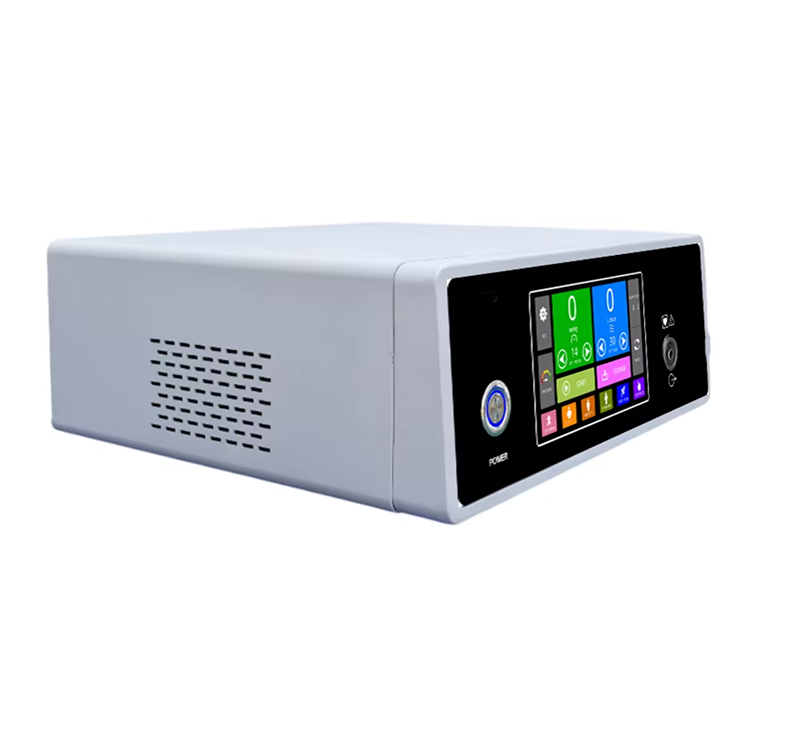

medical Gas CO2 Insufflator is a core device used in minimally invasive laparoscopic surgeries to provide stable pneumoperitoneum or intracavitary pressure.
By precisely and controllably injecting carbon dioxide gas into a body cavity (usually the abdominal cavity), it creates a clear and stable surgical operating space and maintains the intracavitary pressure at a safe preset value to ensure surgical visibility and safety.
1、Maximum 60L/min flow rate gas replenishment, rapid establishment of pneumoperitoneum.
2、Optional heating function,Avoid excessive loss of body temperature in clinical surgery.
3、Effective smoke discharge,providing wide space and vision for surgery.
Product Gallery
Product Parameters
| Model Types | RD-QF100W | RD-QF200W | RD-QF300W |
| Power supply | AC100-240V | AC100-240V | AC100-240V |
| Input power | 40VA | 40VA | 40VA |
| Fuse | 2XF2AL250V | 2XF2AL250V | 2XF2AL250V |
Insufflation pressure control range | 0.67 kPa -3.30 kPa (5mmHg - 25 mmHg) | 0.67 kPa -3.30 kPa (5mmHg - 25 mmHg) | 0.67 kPa -3.30 kPa (5mmHg - 25 mmHg) |
Insufflation pressure control accuracy | ±0.13 kPa(1 mmHg) | ±0.13 kPa(1 mmHg) | ±0.13 kPa(1 mmHg) |
Range of insufflation gas flow rate | 10 L/min 20 L/min 30 L/min | 15 L/min 25 L/min 40 L/min | 20 L/min 40 L/min 60 L/min |
| Heat up | N | Y | Y |
| Exhaust smoke | N | N | Y |
