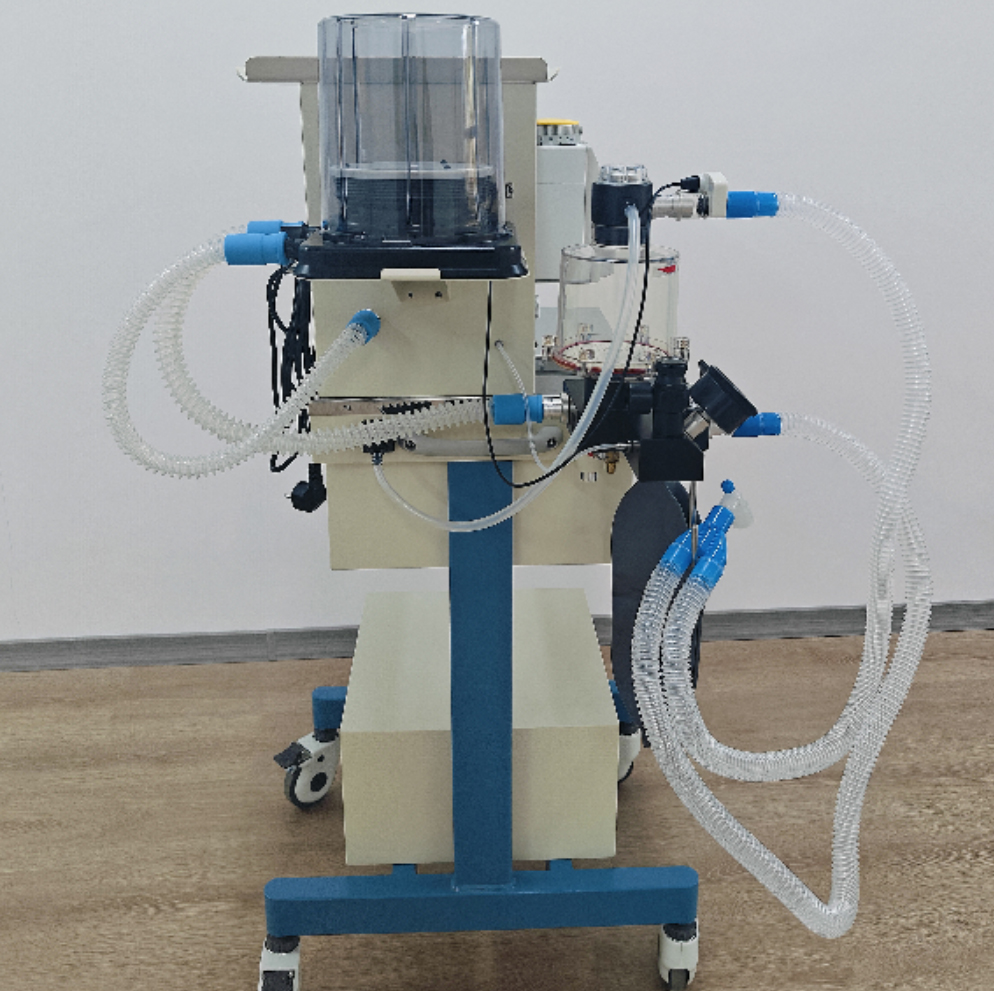

Anesthesia Machine RK-M2000A

Universal Anesthesia Machine

Integrated design, compact structure, easy to move

Stainless steel countertops, never rust, reduce maintenance costs

High luminance LED display

Main Unit:

Working mode:

Application: Adult, Pediatric

For the closed system, half-closed system and half-open system

High pressure limitation: when airway pressure is higher than pre-set

figure, the machine will automatically start protection function. The

airway pressure will stop increasing (not increase any more) to keep

patient safe.

O2 Flush: 25L/min~75L/min

When power supply fails, audible and visual alarms will arise.

Airway pressure: O2: 0.28MPa~0.6MPaPower supply: AC 220V, 50 Hz

Flowmeter:

O2 two tubes Flowmeter (0~ 1L/min 1 ~ 10L/min)

Anesthesia Ventilator:

Bellow for Adult 1 piece

Pneumatically driven and electrically controlled

Monitoring: Tidal volume, Frequency; /E Ratio, Peak airway pressure

Respiratory modes: Manual, IPPV

Tidal volume:0,50~ 1500mL

Respiratory frequency:2~ 99bpm

I:E:5:1 ~ 1:8 adjustable

PTRiG: -2~ OkPa

High pressure limitation:2~ 6kPaLow pressure limitation:0~ 2kPa

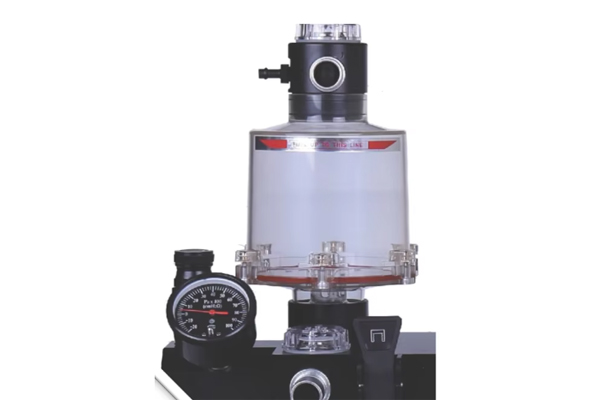

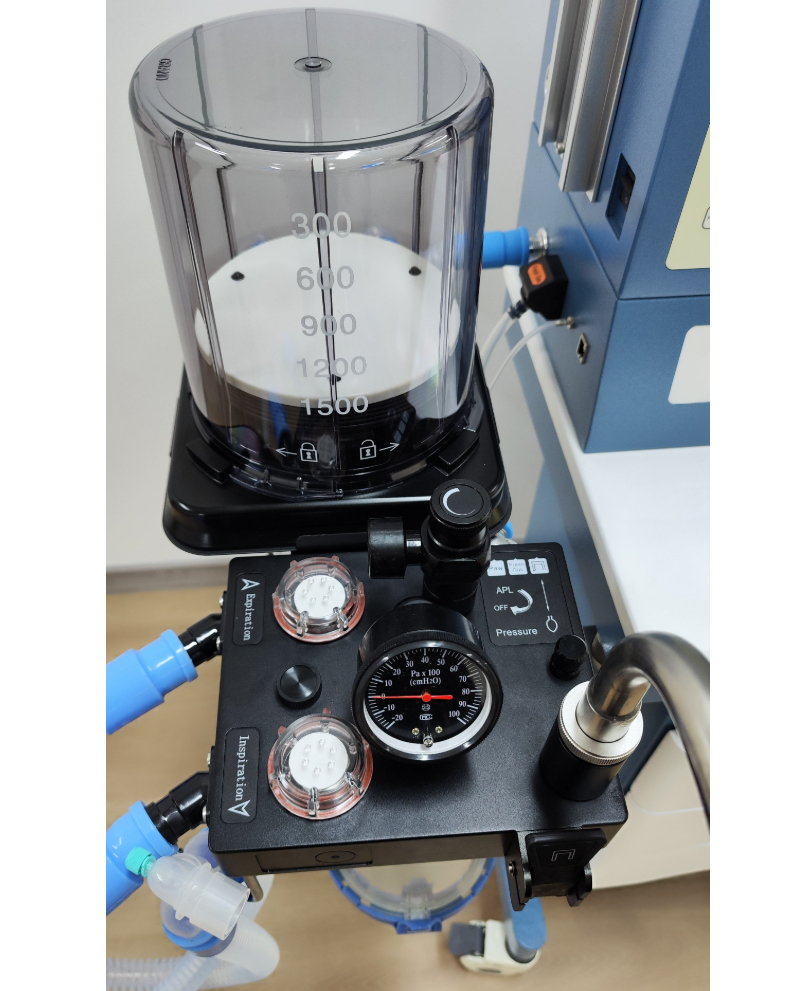

Circle Absorber:

Integrated design, with APL valve, Pressure gauge, etc.

Can be high temperature sterilized. The canister is around 1 L.

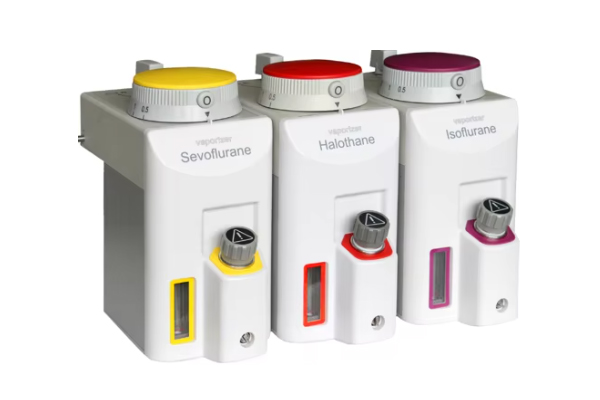

Anesthesia Vaporizer:

High precise Anesthesia Vaporizer (Enflurane, Halothane, Isoflurane, Sevoflurane)

Sevoflurane adjustment scope: 0~ 8% Vol;

Enflurane, Halothane, Isoflurane adjustment scope: 0~ 5%Vol

Automatic compensation of flow, temperature and pressureSelf-lock and interlock

Volume:>180mL
