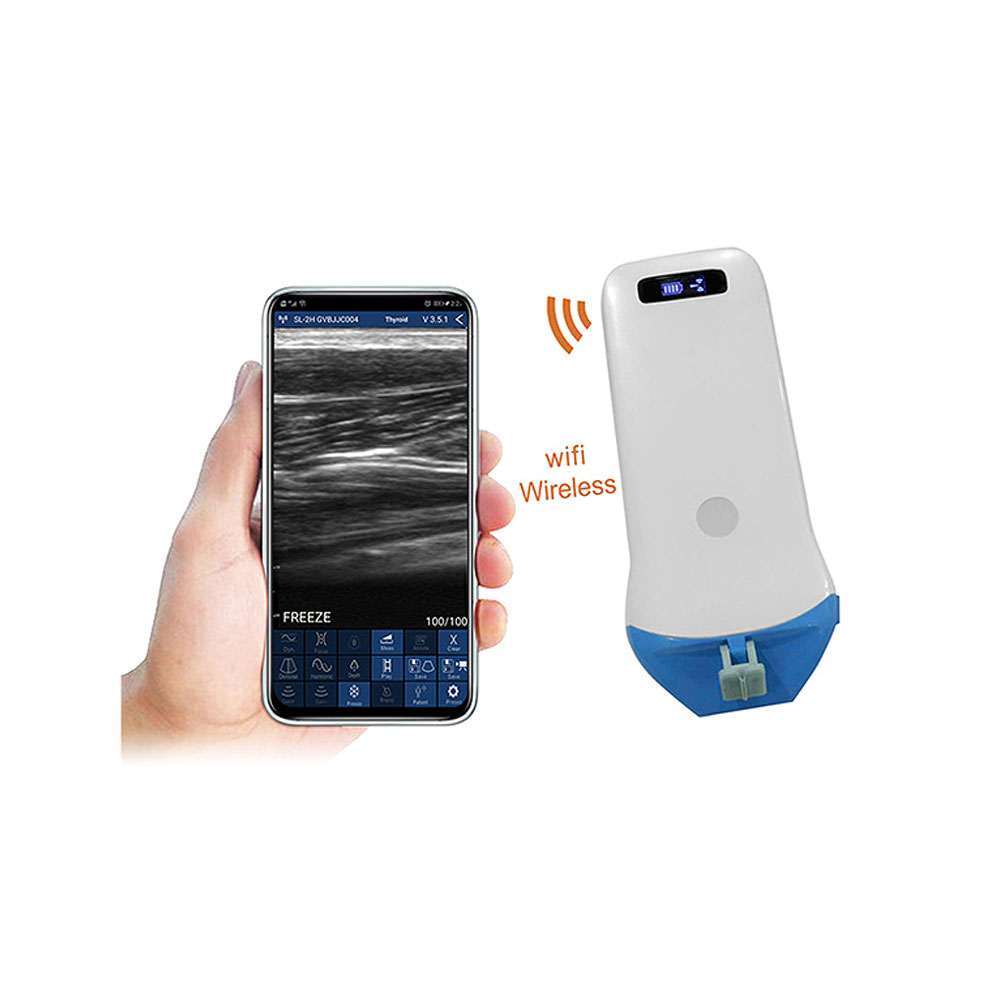

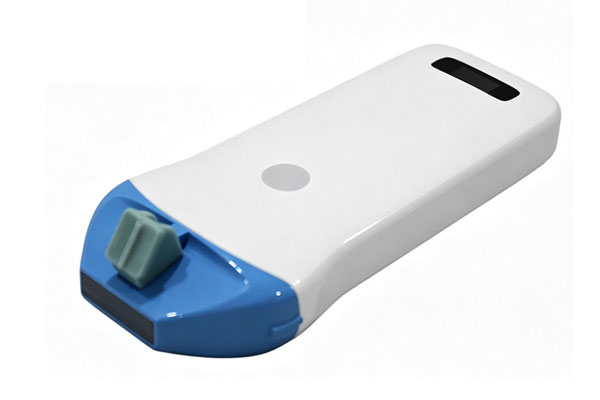

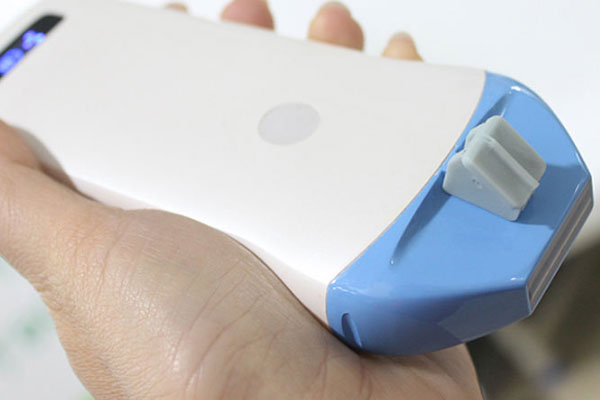

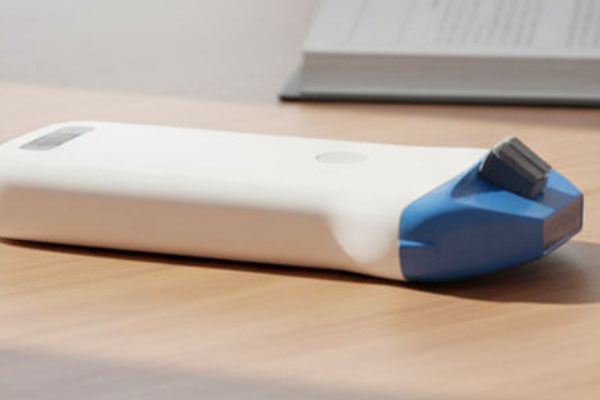

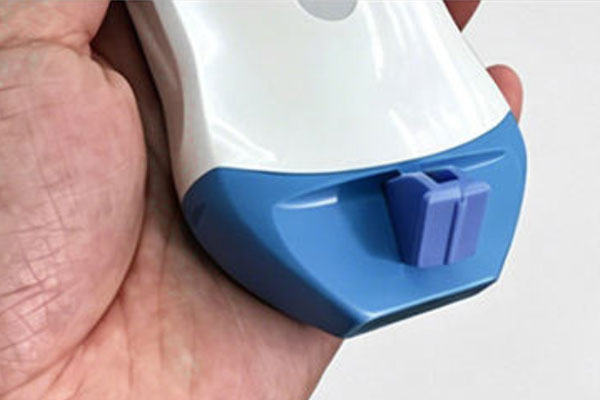

Black and White Handheld Ultrasound RK-5P

Features:

· Advanced digital imaging technology, clear image

·High cost-effective

· Small and small size, easy to carry.

· Waterproof design, convenient for sterilization.

· Wireless type without probe cable, working freely.

· Remote diagnostic convenience, capability and easyimage transfer

.Scan mode: Electronic Array

. Elements: 128

. Channels:32

.Frequency: 10/14MHz

. Depth: 20-55mm

· Scan width: 25mm

· Built-in Battery:4200mAh

· Battery working time: 3 hours

Noise reduction:0-1-2-3-4

· Gain: 30db-105db

.Dynamic Range: 40/50/60/70/80/90/100/110

· Working system: Apple iOS and Android, Windows

· Display mode: B, B/M, Color, PDI, PW

· Charging method: Wireless charging /USB charging

.Wifi type: 802.11g/20MHz/5G/450Mbps

Dimension/Weight: 156x60x25 (mm), 250g

· Mage/Video Storage: jpg, png mp4 and DCM

· Measure: Length, Area, Angle, Obstetrics, Blood flow measurement

, With spatial composite functions

.Cineplay: auto and manual, frames can set as 100/200/500/1000

· Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

· Puncture assist function: the function of in-plane puncture guide line,out-of-plane puncture guide line, automatic blood vessel measurement

· Clinical Application: Thyroid, Small Parts, Pediatrics, Vascular,VesselFlow,carotid, Breast, MSK, Nerve, Aesthetics
