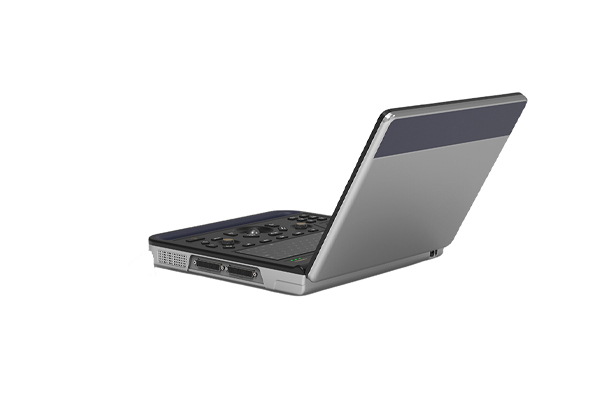

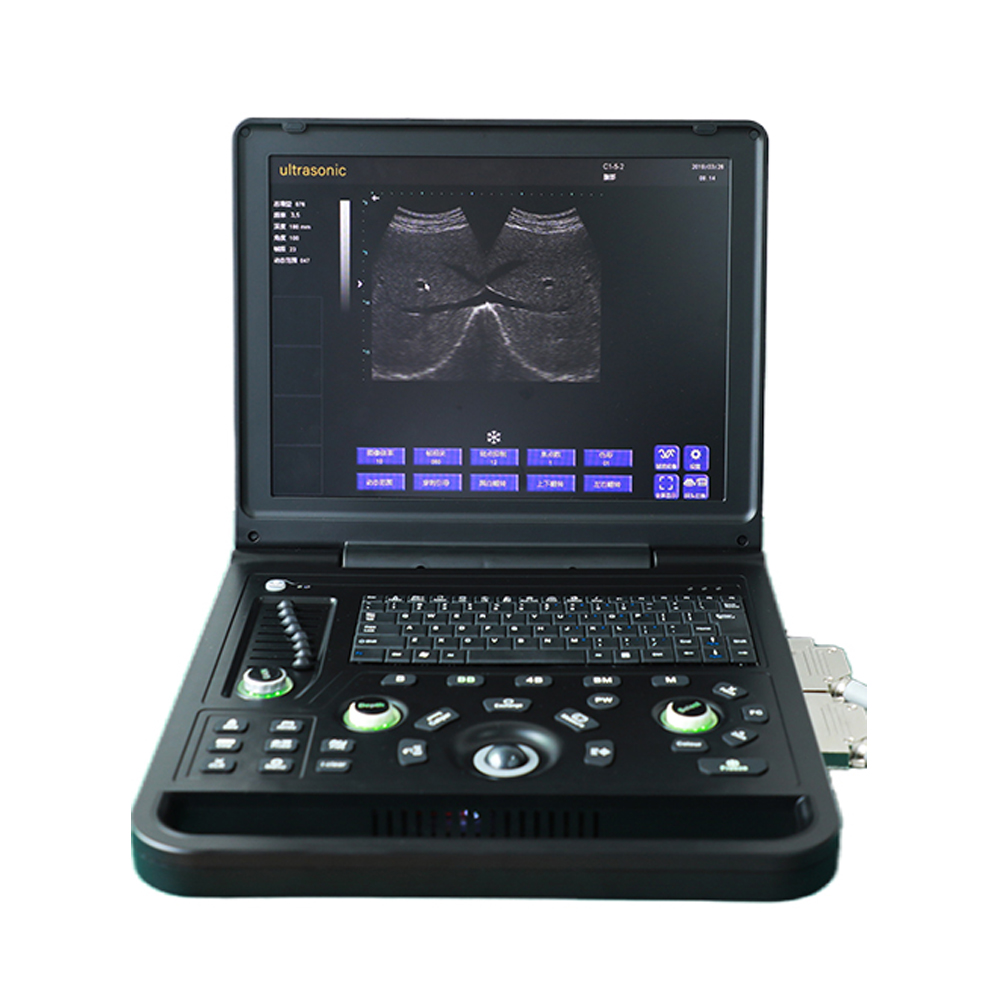

Laptop Color Doppler RK-7C

The RK-7C is a notebook-style color Doppler ultrasound diagnostic instrument based on an ARM architecture system. It features a 15-inch high-definition LED screen (1024×768 resolution), providing clear images and easy operation. The device incorporates preset conditions optimized based on extensive clinical experience and a one-click optimization function, allowing for quick parameter adjustments for different departments and examination sites, thus improving work efficiency.

Technical specifications >>>>>>

• Operating system: ARM architecture system

• Screen: 15 inch, 1024*768 resolution ，HD LED  screen

• Preset and optimization function: with image post-processing function. Based on a large amount of clinical

    experience, the machine has different preset adjustment conditions for different parts or organs examined by

   different departments and has one-click optimization function.

• Obstetric measurement: there are different ethnic measurement formulas

• Operating languages: Chinese, English, German, French, Spanish, Portuguese, Russian, Persian, Arabic, etc

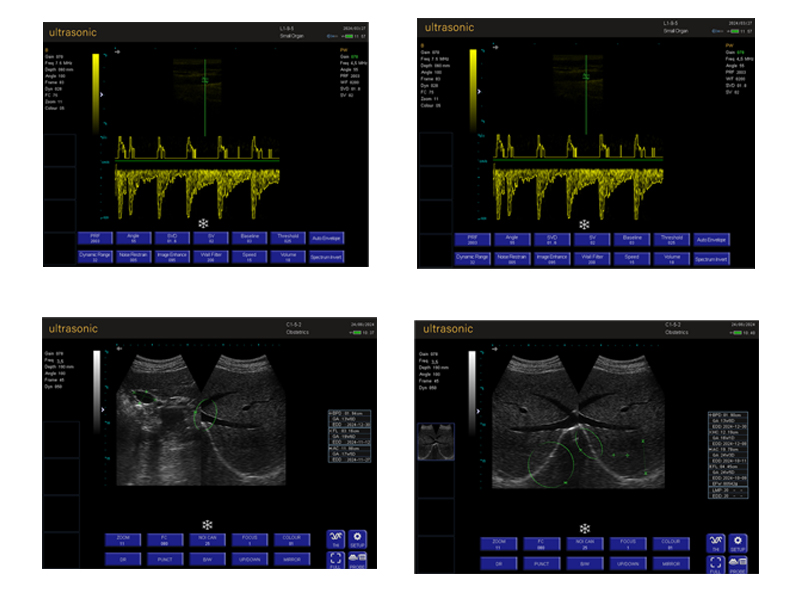

• Imaging Mode: B, B+B, B+M, M, 4B, PW

• Probe array element: automatically identify and use a variety of array element probe（80 elements,96 elements,128 elements) Note: Only the probes

produced by our company.

• Cine playback: ≥500 frame

• Image storage: ≥360 images. External USB storage, single image storage time ≤9 seconds (storage speed is related to the USB device used)

• Scanning angle adjustment: adjustable

• Image magnification: separate swirl depth adjustment (25 levels adjustable);

• Puncture: with puncture guide line, angle and position are adjustable

• Focus: adjustable focus position, 5 levels of focus position adjustment

• Image adjustment: up and down, left and right, brightness, focus position, dynamic range, scanning angle, frame correlation, M speed

• Image processing: image smoothing/sharpening, tissue harmonics, gamma correction, false color• Notes and characters: date, clock, name, age, gender,

doctor, hospital name, image annotation

• Position mark: ≥97 types
