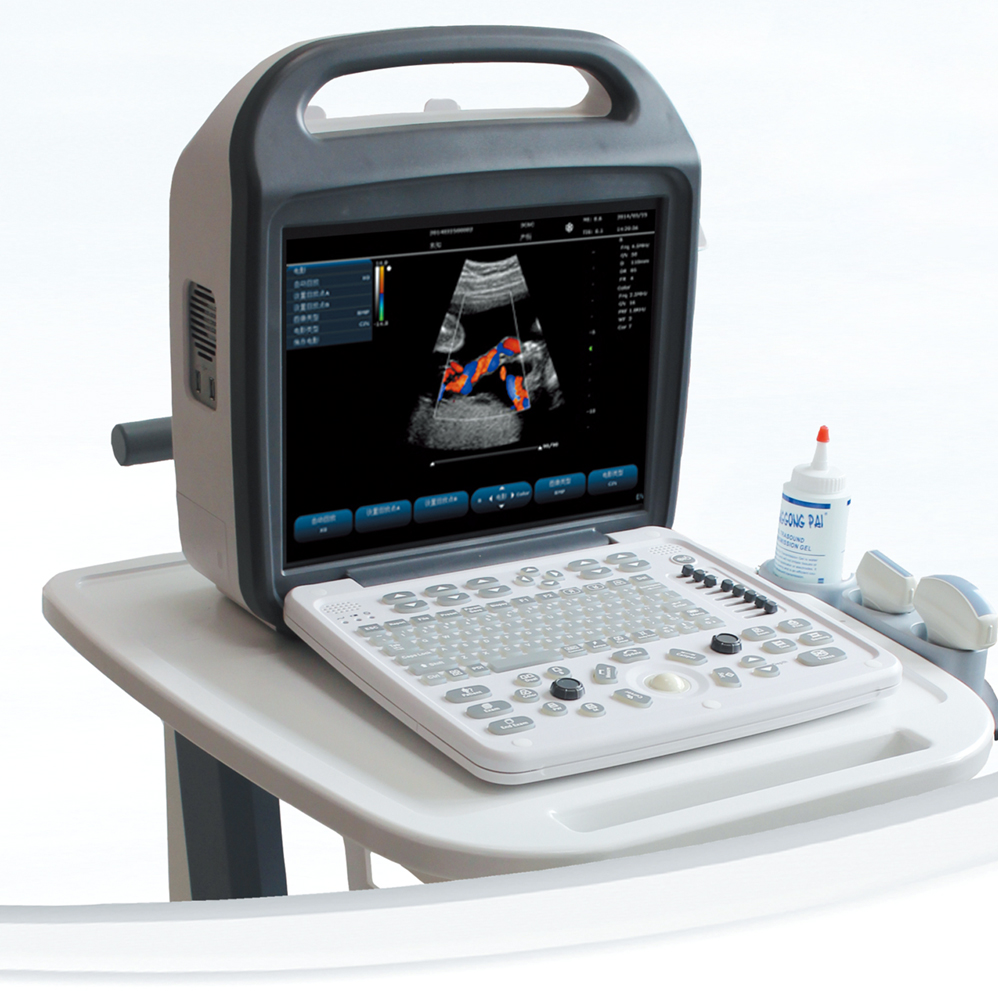

Laptop Color Doppler RK-C10
- Fully Digital High-End Imaging
- Multimodal and Dual Real-Time Display
- Built-in Workstation and Large-Capacity Storage
- Long Battery Life and Portable Design
Application Department
Obstetrics, Gynecology, Cardiology, Vascular Surgery, Urology, Pediatrics, Abdominal
Leave A MessageLive ChatProduct Introduction
Description:
-Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW-Scanning mode: Convex, Linear, Endocavity-Gray scale levels:256-Display:15" high resolution LCD monitor-Transducer Connector: 2 standard-Scanning depth: up to 351mm-Physical channels64
-Transducer element128
-Dynamic imaging technologies: Digital Beam-forming-Digital Frequency Scan
-Dynamic Receiving focusing-Dynamic Receiving apodization-Real-time Dynamic Aperture.-Pre-processing:8-segment TGC adjustment,Dynamic range (0-100), Frame correlation (0-7),Edge enhancement (0-7), Line density (High/Mid/Low)-Post-processing: Gray scale (0-14), Scan angleup to 150, left/right reverse, up/down reverse.-General Measurement: distance, circumference,area, (trace/ellipse), volume, etc.-Calculation package: abdomen,cardiac,gynecology,obstetrics, urology, small parts(thyroid),ect.
Product Gallery
Product Parameters
-Zoom: 10 times
-Cine loop: standard 982-frame cine loop,
can up to 6400 frames
-Integrated Hard disk:500GB
-Probe connectiors: 2
-8-segment TGC
-Back lit control panel
-Interal lithium Battery Supporting normal
diagnosis up to 1.5 hours
-Inverted Harmonic Imaging
-Pseudo color imaging mode
-Annotation library for quick comment
-Graph/text report function
-DICOM storage SCU
-User defined exam settings
-User defined parameters capture (Acquire Set)
-Intuitive soft key at the bottom of screen,
clicking supported
-Beam steering for better needle visualization
-Patient information management system
-Fetal trending--Fetal growth curve graph
-Lithotripsy function supported
-Biopsy function supported
-Support polyembryony measurement up to six
-Intuitive context dependent soft key
-USB image transfer and software upgrade
-Language of UI: Chinese, English
-Peripheral Ports: Two Transducer Ports;
Two USB Ports;DVI (to connect to external monitoror projector);Remote;Video Output;S Video;LAN;
Power Input Port;Foot switch
-Net weight: Approx.8.5 kg
-Power supply: 100~240VAC, 50Hz/60Hz
-Dimensions: 400mmx394mmx172mm
Standard Configuration:
One convex array probe(2.5/3.5/4.5/H5.0/H6.0MHz)
Options:
-Linear array probe(6.5/7.5/8.5/H9.0/H10MHz);
-Endocavity probe(5.0/6.5/8.0/H8.0/H9.0MHz);
-Rectal linear probe;
-Micro convex probe;
-Needle-guided brackets
-Home charger and Car charger
-Wireless data transfer function
-USB water-resistant footswitch
-Mobile trolley

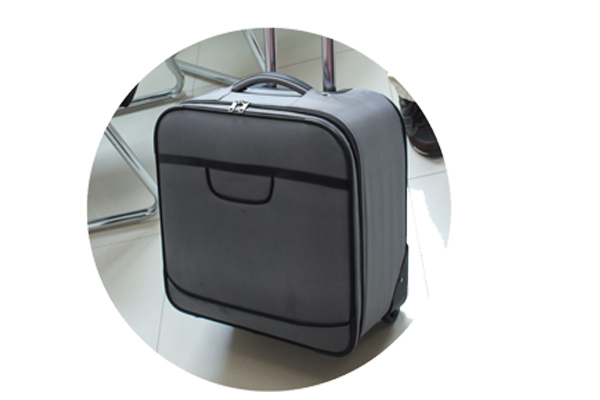

-Wheeled transport case
