Ultrasound Scanner RK-3L（Color）
- High-definition imaging
- High cost-effectiveness
- Extremely portable and wireless
- Easy sterilization and remote diagnosis
Application Department
ICU,Obstetrics and Gynecology,Pediatrics
Leave A MessageLive ChatProduct Introduction

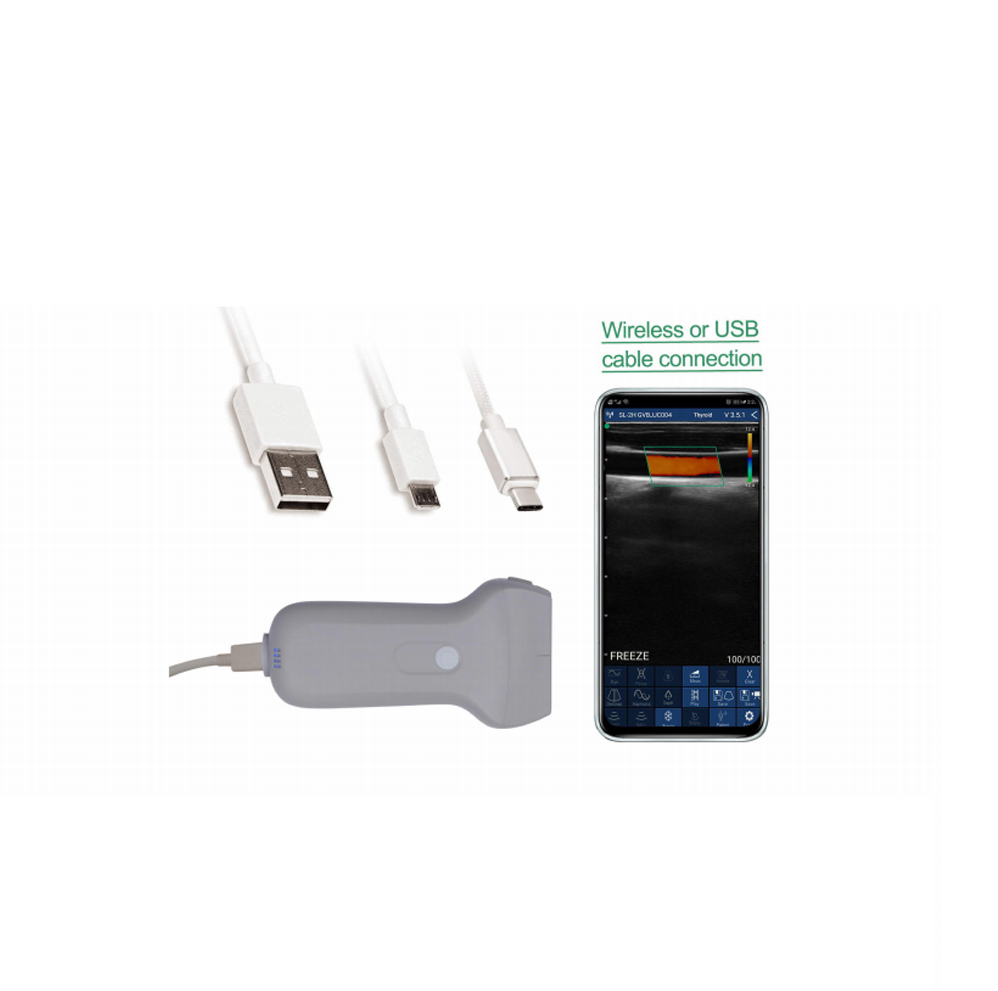

Wireless ultrasound probe" is a miniultrasound scanner that without screen.We made the main unit condensed into a small circuit board builded-in theprobe, and showing image in smartphone/tablet through Wifi transferring.-Image transferring through internalwifi from
probe, no need external Wifi signal.
Features:
.Advanced digital imaging technology, clear image
.High cost-effective
.Small and small size,easy to carry.
.Wireless type without probe cable, working freely.
.Waterproof design, convenient for steriization.
.Remote diagnostic convenience, capability and easy image transfer
Standard Configuration:
.Wireless probe device 1 Unit
.Built-in Battery and charge cable 1 Set
.User Manual copy

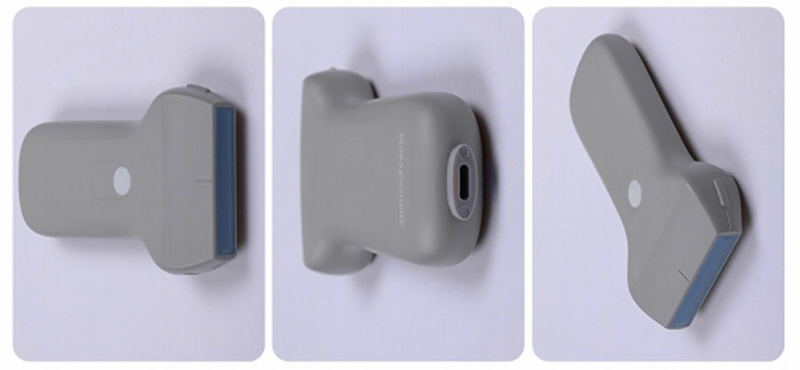

Product Gallery
Product Parameters
Scan mode: Electronic Array
Elements: 80
Channels: 16
Frequency: 7.5/10MHz
Depth: 20-80mm Scan
width:40mmBuilt-in
Battery: 1350mAhBattery
working time: 1 hours
Noise reduction: 0-1-2-3-4
Gain:30db-105db·Dynamic
Range:40/50/60/70/80/90/100/110
Display mode: B, B/M, Color, PDI, PW
Measure: Length, Area, Angle, Obstetrics·
Wifi type: 802.11g/20MHz/5G/450Mbps·
Charging method: USB charging·
Mage/Video Storage: jpg, png mp4 and DCM·
Working system: Apple iOS and Android, Windows
Cineplay: auto and manual, frames can set as 100/200/500/1000 Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
Puncture assist function: the function of in-plane puncture guide line,out-of-planepuncture guide line, automatic blood vessel measurementClinical
Application: Thyroid, Small Parts,Pediatrics, Vascular, VesselFlow,carotid, Breast, MSK, Nerve, Aesthetics
