Product Introduction

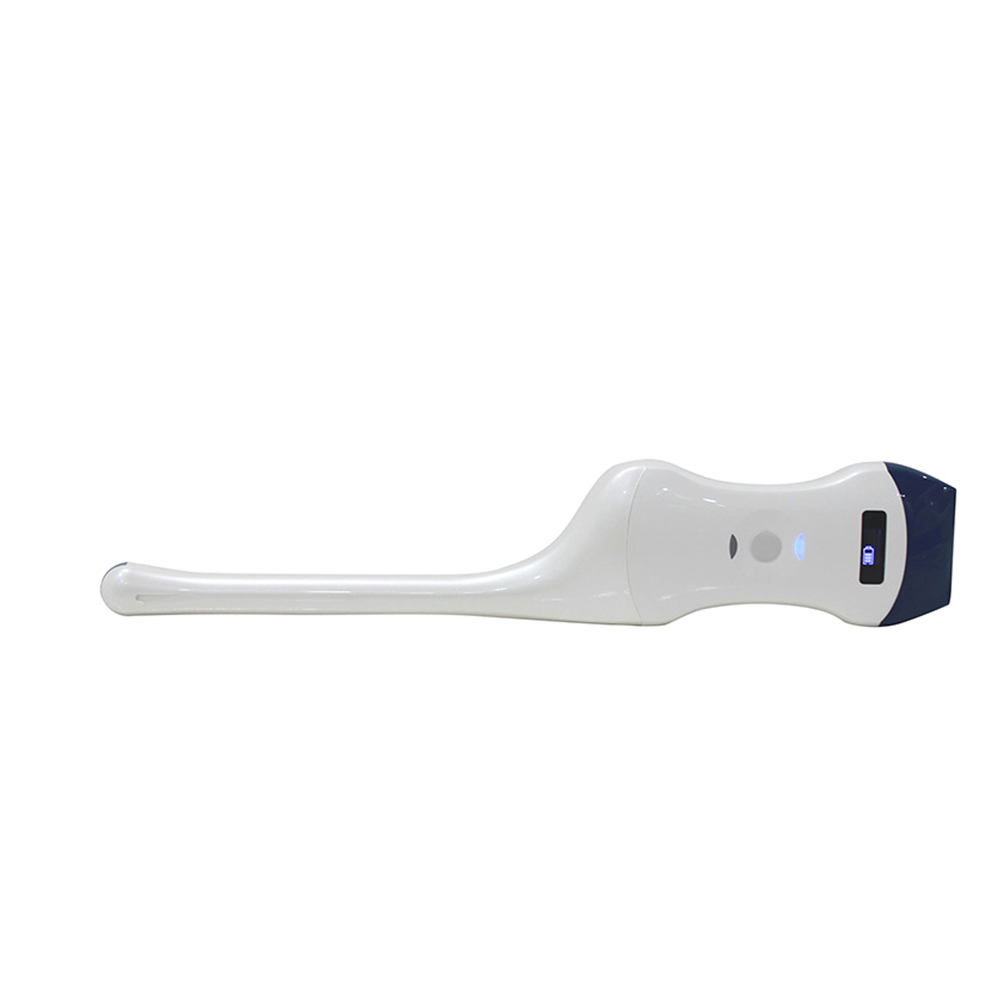

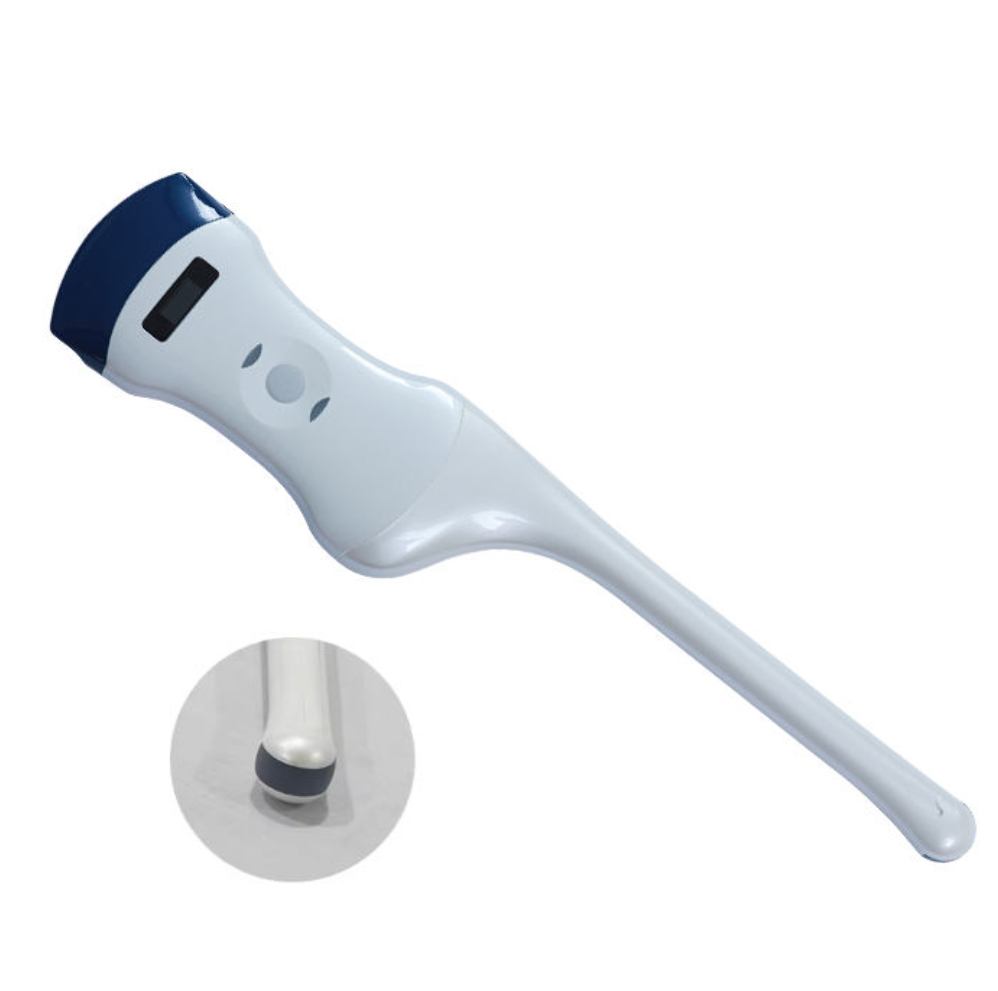

Top-selling dual wireless color Doppler ultrasound machine for hospitals and clinics, with linear and vaginal probe
How it works
The wireless probe is a mini ultrasound scanner withouta screen. We minimize the components of a traditional ultrasound into a small circuit board built into the probe,and showing image in smart phone/tablet through Wifitransferring.Image transferring through internal wifi fromprobe, no need external Wifi signal.
Clinical positioning
Anesthesia, pain, care, ICU, emergency, ambulance,urology, hepatobiliary, endocardial, breast, physical examination, rehabilitation, bone injury, gynecology,obstetrics, reproductive, neonatal and otherdepartments, grassroots medical/family doctors, family planning stations, nursing homes, examination centers,nursing homes, post partum care centers, plastic surgery and beauty institutions, sports team medical teams, military battlefield rescue medical teams,disaster rescue medical teams, etc.
Features
·Advanced digital imaging technology, clear image
·High cost-effective
· Small and small size, easy to carry.
· Waterproof design, convenient for sterilization.
· Wireless type without probe cable, working freely.
· Remote diagnostic convenience, capability and easy
image transfer

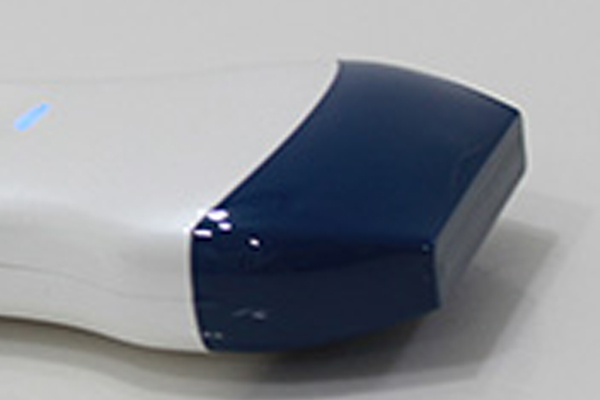

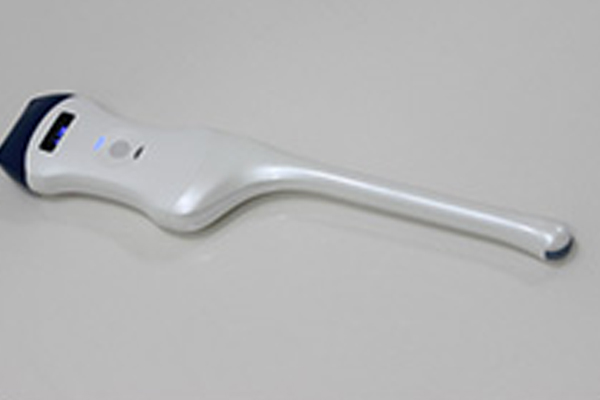

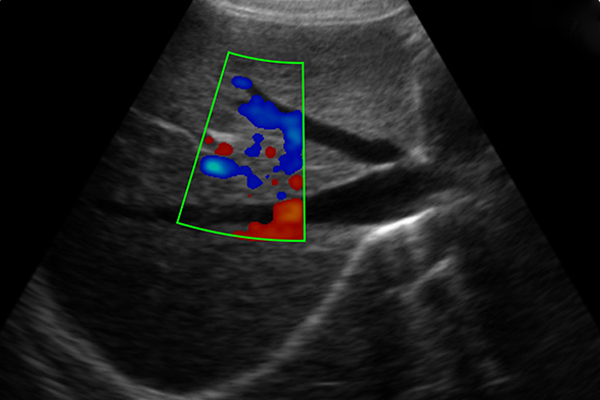

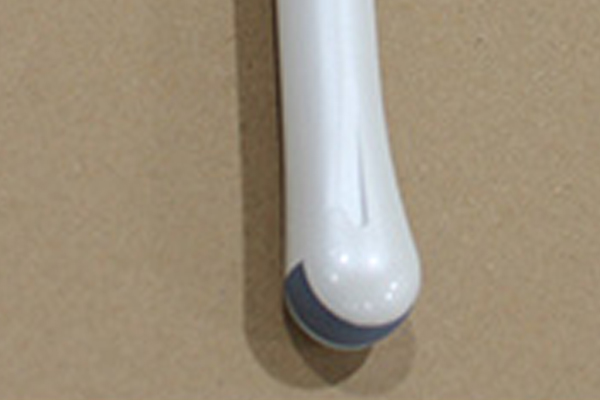

Product Gallery
Product Parameters
· Scan mode: Electronic Array
. Elements: 128
. Channels: 32
. Built-in Battery: 2800mAh
· Battery working time: 2 hours
· Noise reduction: 0-1-2-3-4
· Gain: 30db-105db
· Display mode: B, B/M, Color, PDI, PW
· Frequency: Convex 3.2/5MHz, Transvaginal 6.5/8MHz
. Depth: Convex 90-305mm, Transvaginal 30-120mm
· Scan angle and width: Convex 60°, Transvaginal 10°
· Charging method: Wireless charging
·Dynamic Range: 40/50/60/70/80/90/100/110
· Measure: Length, Area, Angle, Obstetrics
. Wifi type: 802.11g/20MHz/5G/450Mbps
. Dimension/Weight: 350x70x25 (mm), 300g
· Mage/Video Storage: jpg, png mp4 and DCM
· Working system: Apple iOS and Android, Windows
· Cineplay: auto and manual, frames can set as
100/200/500/1000
· Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
· Puncture assist function: the function of in-plane puncture
guide line,out-of-plane puncture guide line, automatic blood
vessel measurement
· Clinical Application: Abdomen, Gynecology, Obstetric,
Cardiac,Urology, Kidney, Lung
