Ultrasound Scanner RK-4PL

How it works

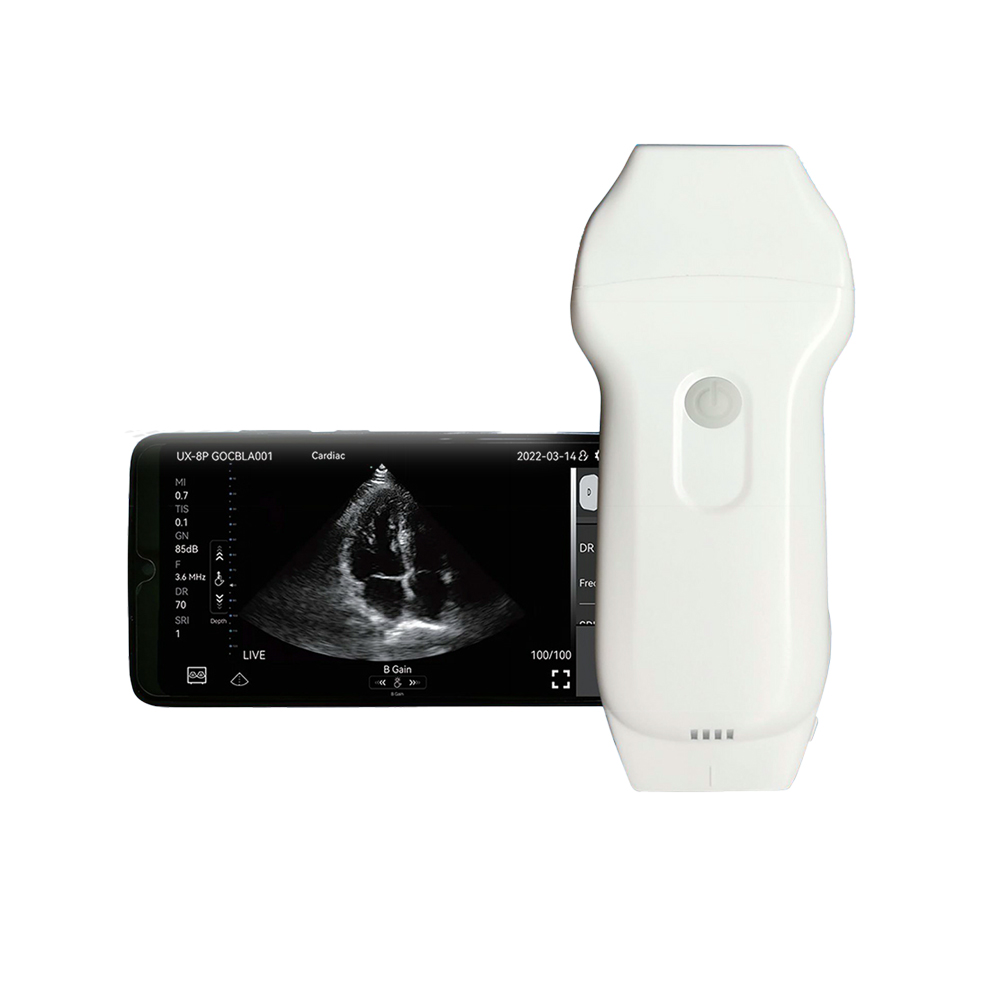

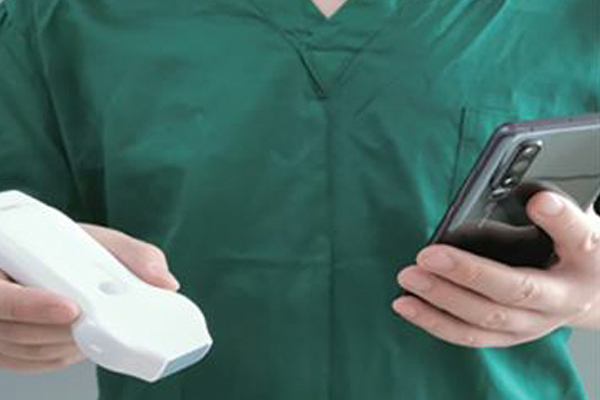

Wireless ultrasound probe" is a miniultrasound scanner that without screen.We made the main unit condensed into a small circuit board builded-in theprobe, and showing image in smartphone/tablet through Wifi transferring.-Image transferring through internalwifi from probe, no need external Wifi signal.

Clinical positioning

Anesthesia, pain, care, ICU, emergency, ambulance,urology, hepatobiliary, endocardial, breast, physicalexamination, rehabilitation, bone injury, gynecology,obstetrics, reproductive, neonatal and otherdepartments, grassroots medical/family doctors, familyplanning stations, nursing homes, examination centers,nursing homes, postpartum care centers, plasticsurgery and beauty institutions, sports team medicalteams, military battlefield rescue medical teams,disaster rescue medical teams, etc.

Innovative design

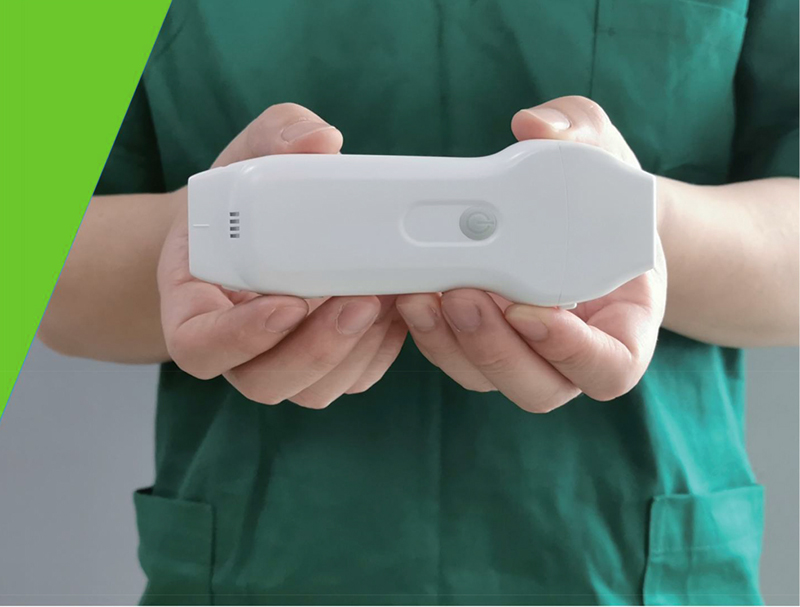

Cardiac/Linear Array Dual Probe. Two-in-one.(Can only be used on the heart and superficial tissues; not for abdominal organs.)

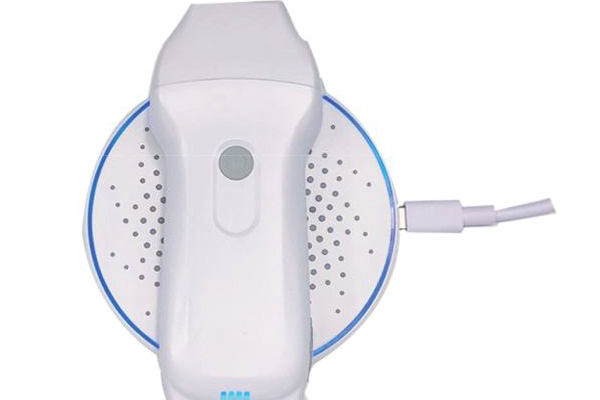

WIRELESS CHARGE

Easy and connect with a wireless powerbank.

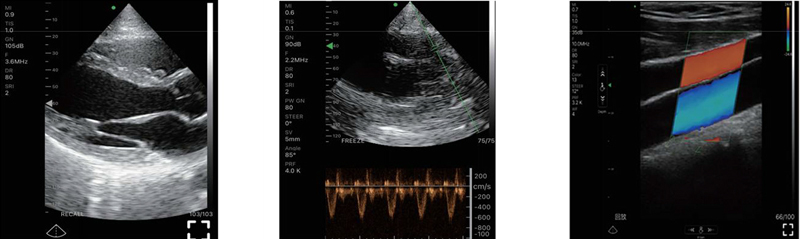

HIGH QUALITY IMAGES

See The Difference Great Image Quality Makes

FEATURES

• One scan whole body: D2CP composed of phased and linear array, it can scan from abdomen to superficial, especially heart.

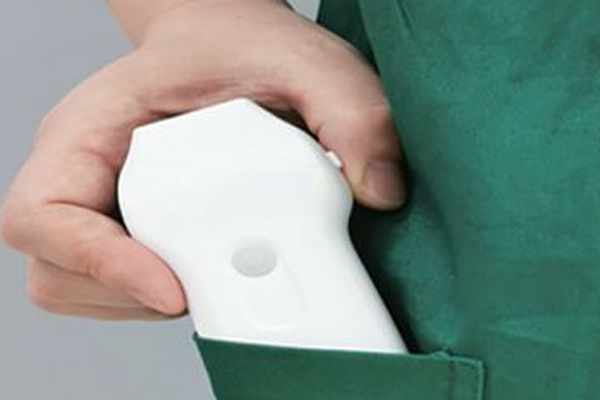

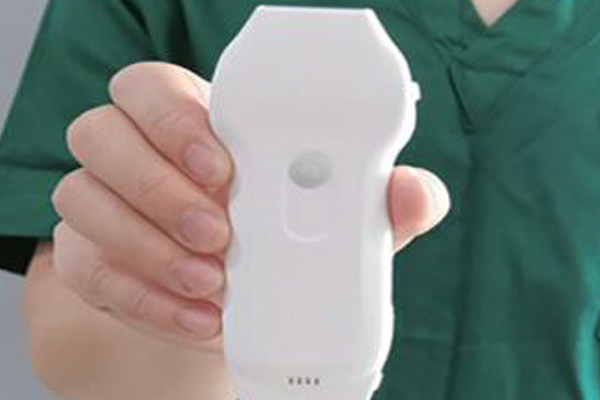

• Small, light, built in battery: You can easily use it anywhere.

SPECIFICATION

Scan Angle/Length: Phased 80,Linear 25mm

Frequency: Phased probe 2.2/3.6MHz,Linear probe 7.5/10MHz

Scan Mode: B, B/M, Color, PW

Display Depth: Phased 90~190mm, Linear 20~100mm

Power: Built-in lithium battery, wireless or usb charge 1.5h, work 1.5h

Working System: iOS, Android, Windows

WiFi Type: 802.11n/2.4G/5G

APPLICATION

Application Sites: Cardiac, Superficial, Abdomen, etc.

Application Directions:

structure or ultrasound image study.

• Private clinic: Cardiac, Superficial, Abdomen, etc check.

Preliminary examination: Home care, family planning.
