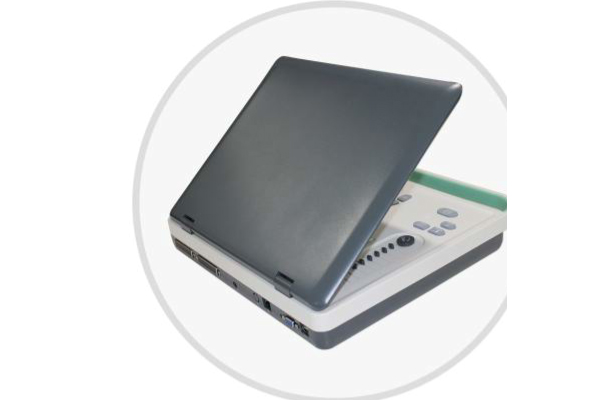

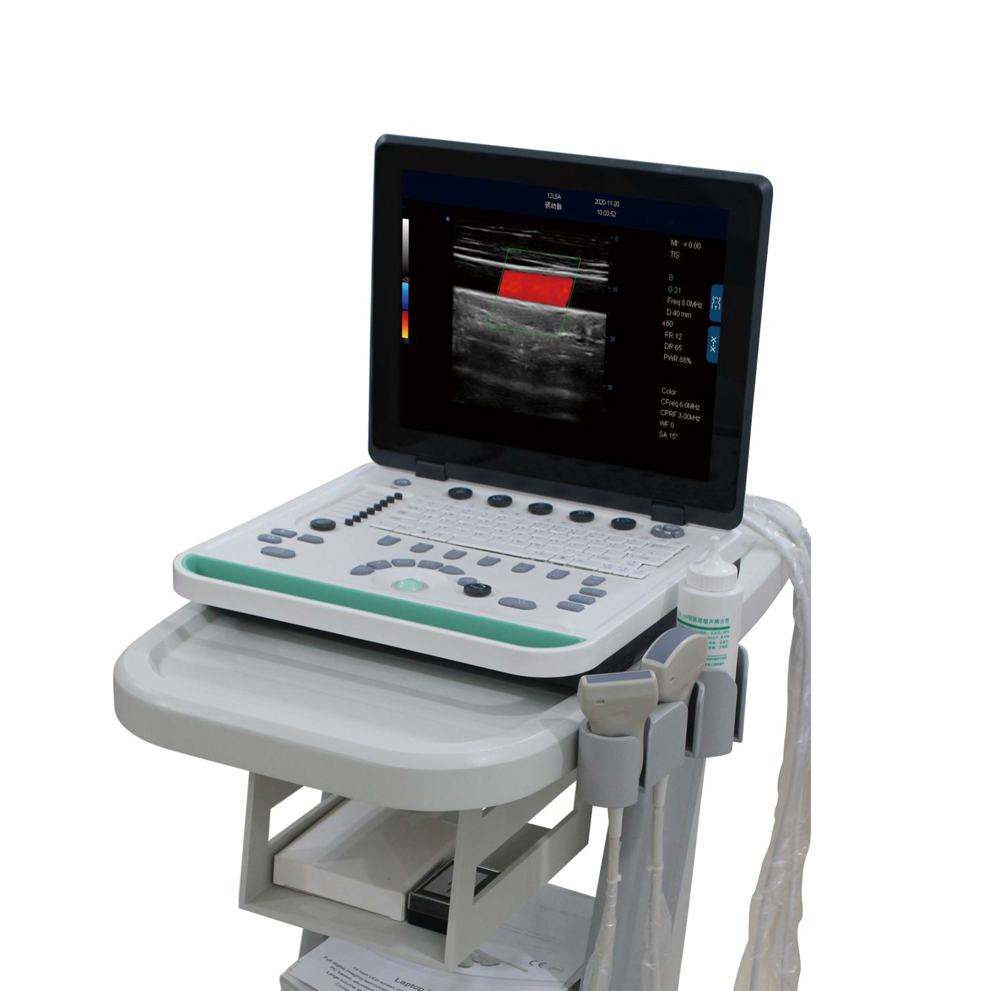

Laptop Color Doppler RK-C5Pre
- Fully Digital High-End Imaging
- Multimodal and Dual Real-Time Display
- Built-in Workstation and Large-Capacity Storage

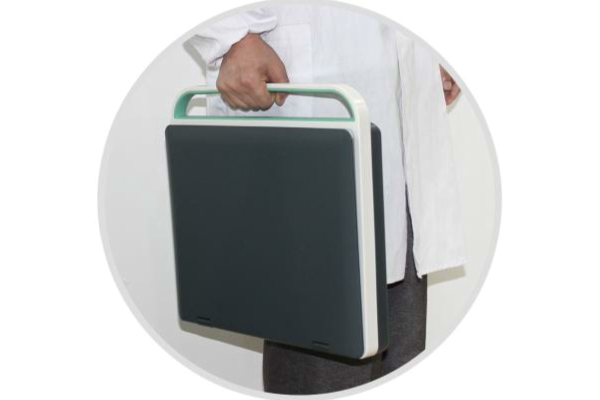

- Long Battery Life and Portable Design
Application Department
Obstetrics, Gynecology, Cardiology, Vascular Surgery, Urology, Pediatrics, Abdominal Surgery
Leave A MessageLive ChatProduct Introduction
The RK-C5Pre is a Windows-based laptop-style color Doppler ultrasound diagnostic instrument suitable for examination needs in multiple clinical fields, including abdominal, cardiac, gynecological, obstetric, urological, small organ, pediatric, and vascular areas.
Equipment Instructions
For examinations of abdomen, heart,gynecology, obstetrics,urology, small organs, pediatrics, blood vessels,etc.
Main technical parameters and functions
-Technology platform: WINDOWS platform
-Physical channels 32, Probe array elements 80
-Machine size:400mm(W)x394mm(H)x thickness 172mm
-Weight: Net Weights7.5kg (with one probes8.2kg,with two probess8.gkg)
-Packing size:500mm(L)x 500mm(W)x 430mm(H)
-Display: 15 inch LCD high resolution
-Fully digital imaging technology: multi-beam synthesis, real-time point-by-point dynamic focus imaging,
pulse inverse harmonic composite imaging, spatial composite, image enhancement and noise reduction
-Imaging modes: Bmode, M mode, Color (color Doppler)mode, PW (pulse Doppler)mode

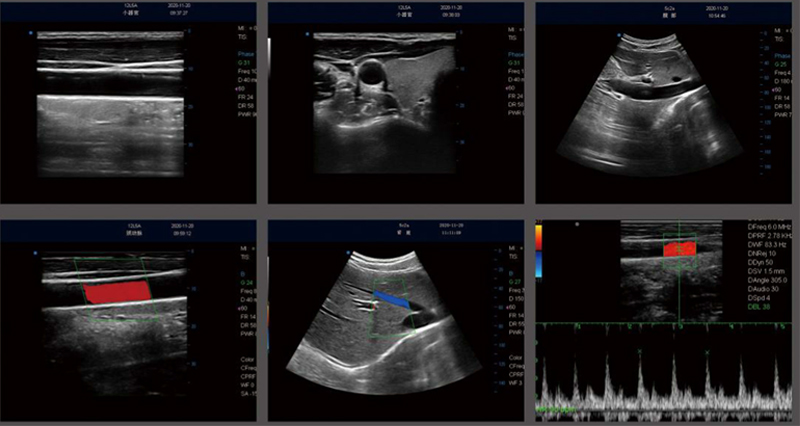

-Image display mode: B, double frame, 4 frame,B+M, M,B+Color, B+PW, PW,B+Color+PW,B/BC dual
real-time-Supported probes:3C6C convex array probe,L4C/8L4C/10L25C linear array probe,6E1C
transvaginal probe,6C15C/3C20C micro-convex probe,617C rectal probe;
-Probe frequency: 4.3-12.0MHz
-Movie playback:500-1500 frames;
-Image magnification:real-time scanning(B, B+C,2B,4B),status: 10 times
-Image storage: support JPG image format and AVI movie format,-Support local storage
-Support DICOM,comply with DICOM3.0 standard
-Built-in workstation: support large-capacity hard disk(2128GB), support patient data retrieval and browsing
-Volume calculation software package: abdomen,gynecology, obstetrics, small organs, heart, blood vessels,etc.
-Battery: Built-in large-capacity lithium battery,continuous working time 21.5 hours
-Image parameters
B mode
1.Grayscale mapping: 215 files 2. Frame related: 28 files 3.Edge enhancement: 15 fles
Product Gallery
Product Parameters
4. Image enhancement:≥5 files 5.Space composite: switch adjustable
6. Image flip: up and down,left and right 7.Maximum scanning depth:250mm
M mode
1.Sweep Sleep: ≥4 levels adjustablePW mode 2. Line Average: ≥5 files
PW mode
1.SV size/position: SV size 1.0-8.0mm adjustable 2.PRF:≥5 files 3. Sweep Sleep: ≥8 levels adjustable
4.Correction angle: 360 degrees 5. Spectrogram flip: switch adjustable 6.Doppler sound: ≥20 files
Color/PDl mode
1. Wall filter ≥6 gears adjustable 2.Color afterglow:2DB---80DB
3.Color priority:1-255 4. Pulse frequency: ≥8 gears adjustable
-Measurement and calculation
1.B/Cmode routine measurement: distance, area, circumference, volume, angle, area ratio, distance ratio
2. Routine measurement in M mode:time, slope,heart rate, distance
3. Routine measurement in Doppler mode: heart rate,resistance index, pulsatlity index,time, blood flow,peak blood flow
4. Obstetrics application measurement: double parietal diameter,femur length,head circumference,
abdominal circumference,head arm diameter,gestational sac length,first stage, second stage,general obstetrics, amniotic fluid index,routine
5.Gynecological B-mode application measurement 6. Heart B, M mode application measurement
7. Vascular PW mode application measurement 8. Small organ B mode application measurement
9. Urinary B-mode application measurement 10.Pediatric B mode application measurement
11.Abdominal B mode application measurement
