Reinkom Medical Instruments Co., Ltd
A World-Leading Supplier Of Medical Solutions

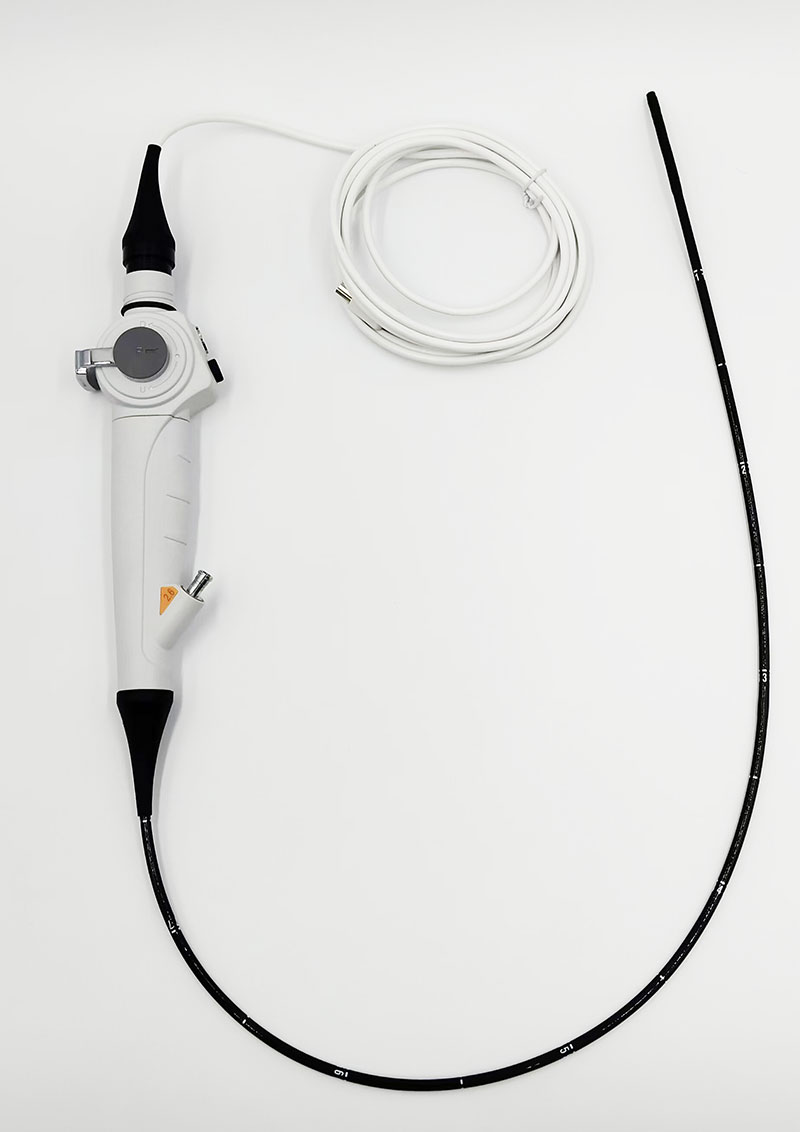

Reusable Digital Flexible Bronchoscope
- Extremely low cost per use
- Compatible with mainstream image processing systems
Application Department
Anesthesiology,ICU,Thoracic Surgery, Emergency Department
Leave A MessageLive ChatProduct Introduction
A reusable flexible electronic bronchoscope is a core endoscopic device used for examining and treating airway and lung diseases. Equipped with a high-definition electronic imaging system, it precisely reaches the target area via its flexible scope, providing real-time, clear video images. Compared to traditional fiber optic endoscopes, it offers higher image resolution and greater operational flexibility.
Product Gallery
Product Parameters
| Optical system | ||
| Field of View | 120° | |
| Direction of View | Forward viewing | |
| Depth of Field | 5-50mm | |
| Light Source | LED | |
| Insertion section | |||||
| 160K pixels series (compatible Processor:RK-VL-12) | |||||
| Model | RK-ZQA2812 | RK-ZQA3818 | RK-ZQA4826 | RK-ZQA5230 | RK-ZQA5832 |
Insertion Tube Outer Diameter | 2.8mm | 3.8mm | 4.8mm | 5.2mm | 5.8mm |
| Working Channel innerDiameter | 1.2mm | 1.2mm | 2.6mm | 3.0mm | 3.2mm |
| Resolution | 400*400 | ||||

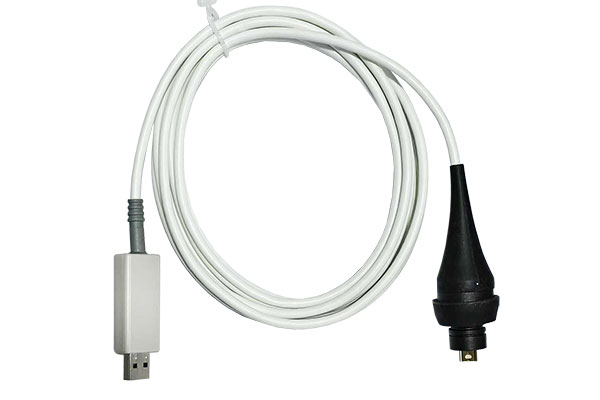

| 1.0 Megapixels series (USB Output, compatible with cellphone, tablet,computer, etc.) | |||||
| Model | RK-ZQB3800 | RK-ZQB4816 | RK-ZQB5826 | ||
| Insertion Tube OuterDiameter | 3.8mm | 4.8mm | 5.8mm | ||
| Working Channel inner Diameter | 0mm | 1.6mm | 2.6mm | ||
| Resolution | 1280*720 | ||||
| Working Length | 600mm | ||||
| Bending Section | |||||
| Deflection Angle | Up 210°, Down 210° | ||||
| Working Length | 860mm | ||||
