Diaposable Digital Flexible Bronchoscope
- Prevent cross-infection and improve patient safety
- Ready to use immediately, simplifying the process.
Application Department
Anesthesiology,ICU,Thoracic Surgery, Emergency Department
Leave A MessageLive ChatProduct Introduction
The disposable electronic flexible bronchoscope is a revolutionary endoscopic device designed specifically for respiratory diagnosis and treatment. It integrates a miniature high-definition camera and light source at the tip of a flexible endoscope, transmitting clear, real-time images to an external display screen via electronic signals. Its most significant feature is its "single-use" capability; each patient uses a brand-new, sterile endoscope, completely eliminating the risks associated with cross-infection and inadequate cleaning and disinfection, while also eliminating expensive repair and maintenance costs.
Resolution:1280*800
External Interface:TYPE-C, HDMl output,
Three-phase power interface Screen type: Capacitive touch screen
Function: white balance, brightness adjustment,Photo and video recording

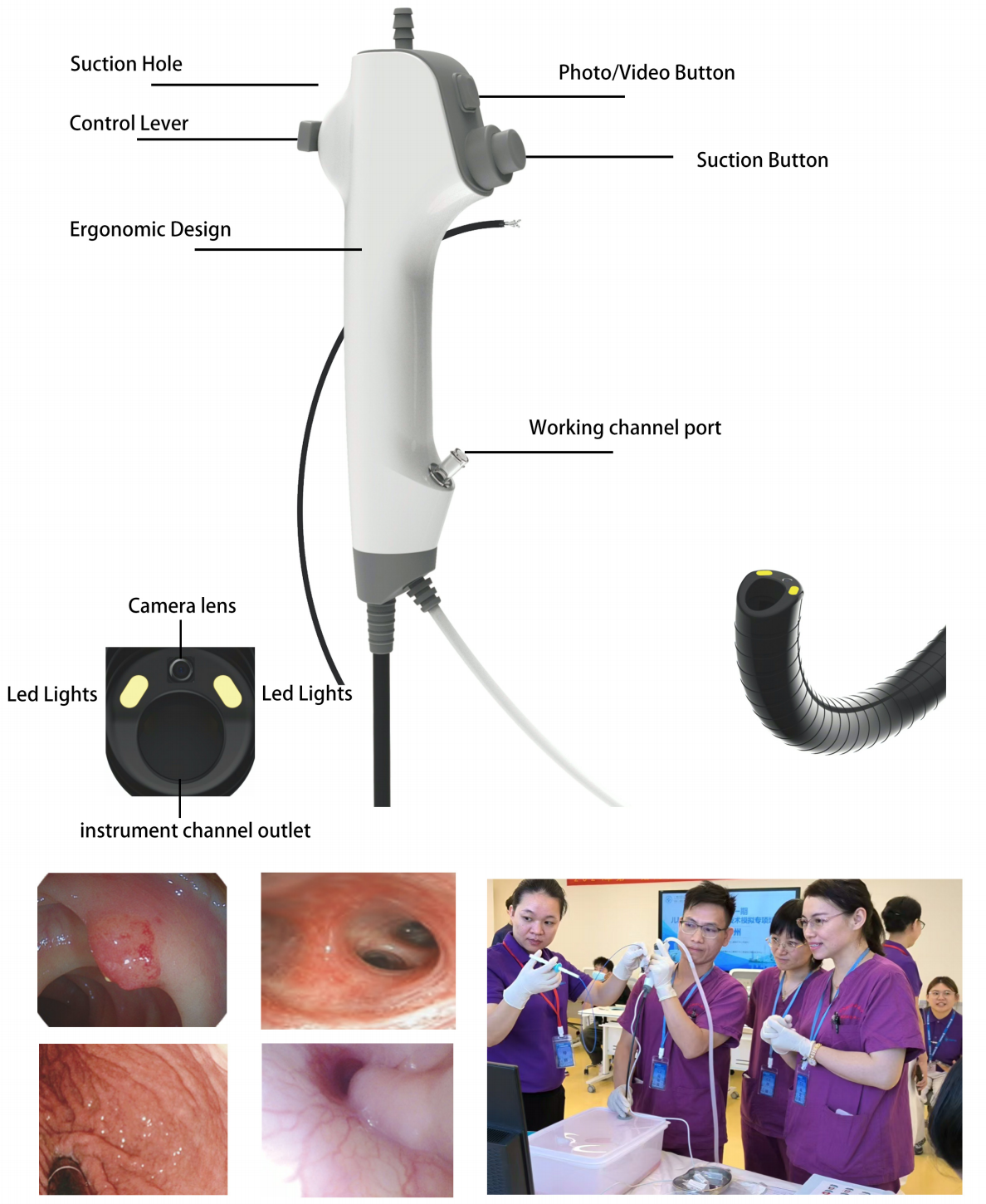

Diaposable Digital Flexible Bronchoscope Structural composition

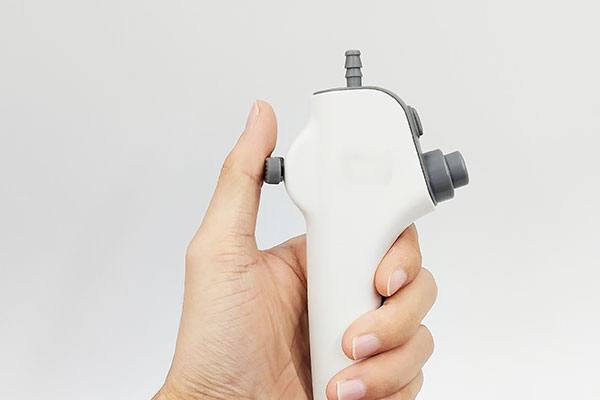

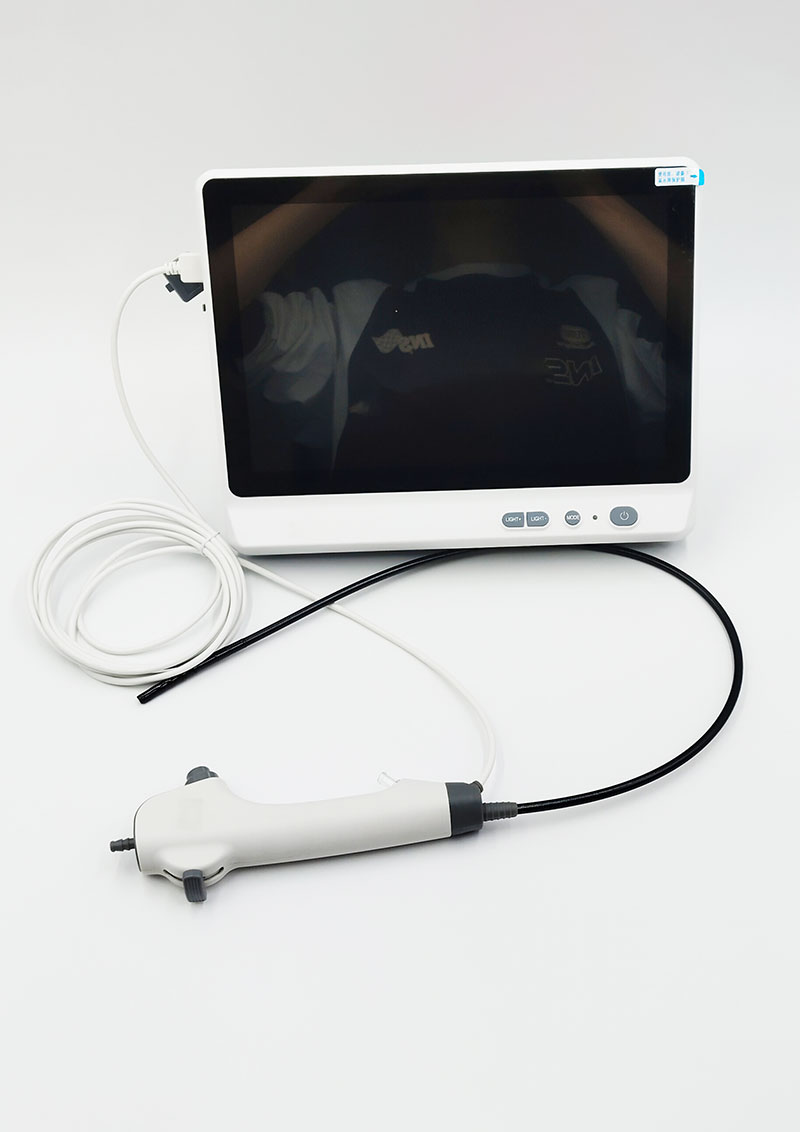

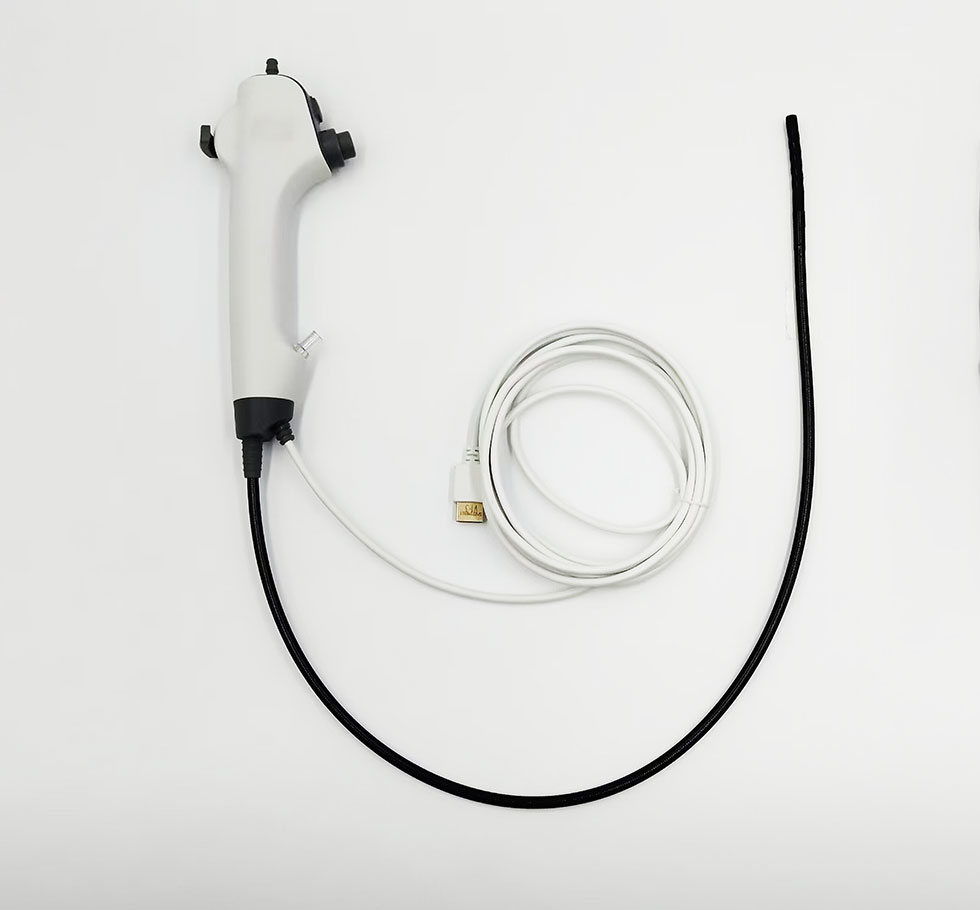

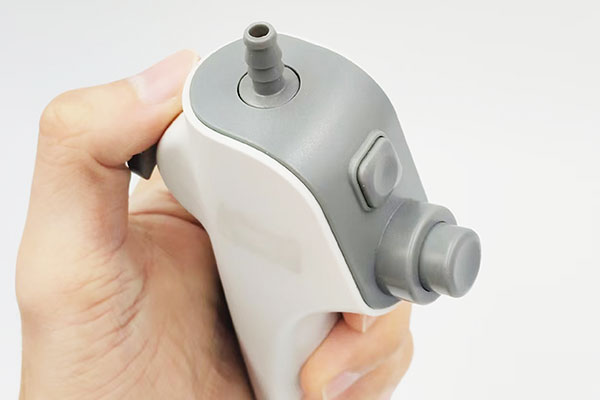

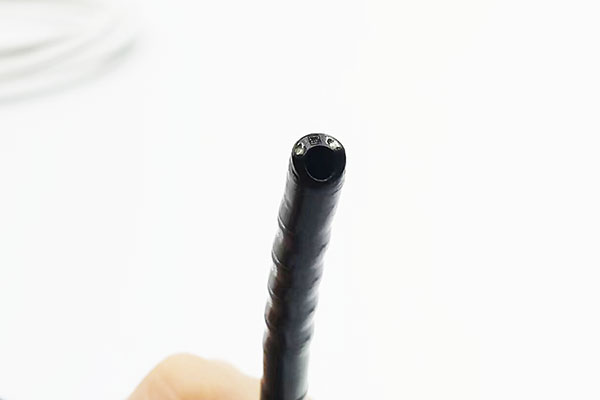

Product Gallery
Product Parameters
| Optical system | ||
| Series | 160K pixels | 1.0 Megapixels |
| Field of View | 120° | 140° |
| Direction of View | Forward viewing | Forward viewing |
| Depth of Field | 5-50mm | 3-100mm |
| Light Source | LED | LED |
| Insertion section | ||||
| 160K pixels series (compatible Processor:RK-VL-12) | ||||
| Model | Outer Diameter | Inner Diameter | Resolution | |
RK-Y-ZQGJ2812 | 2.8mm | 1.2mm | 400*400 | |
| RK-Y-ZOGJ3816 | 3.8mm | 1.6mm | ||
| RK-Y-ZQGJ4222 | 4.2mm | 2.2mm | ||
| RK-Y-ZQGJ4826 | 4.8mm | 2.6mm | ||
| RK-Y-ZQGJ5230 | 5.2mm | 3.0mm | ||
| RK-Y-ZQGJ5832 | 5.8mm | 3.2mm | ||
| 1.0 Megapixels series (USB Output, compatible with cellphone, tablet,computer, etc.) | ||||
| Model | Outer Diameter | Inner Diameter | Resolution | Workinglength |
| Insertion Tube OuterDiameter | 3.8mm | 0 | 1280*720 | 650mm |
| Working Channel innerDiameter | 4.8mm | 1.6mm | ||
| Resolution | 5.8mm | 2.6mm | ||
| Bending Section | ||||
| Deflection Angle | Up 180°, Down 180° | |||
| Working Length | 860mm | |||
