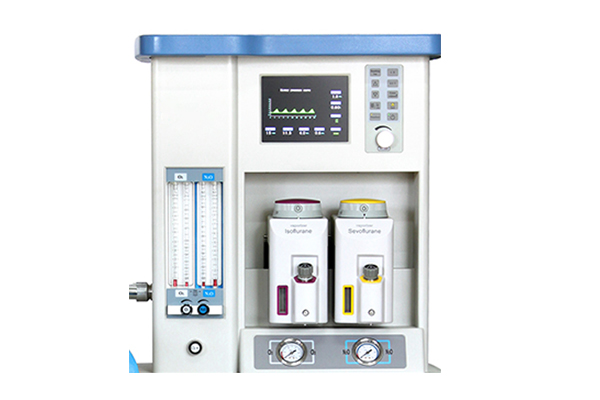

Anesthesia Machine RK-M2000D

·Integrated design, compact structure, fine and elegant

·Menu-driven management system, expanding the use of space

·With Output port for Anesthesia Information Management System

·10.4" coloful TFT+high-luminance LCD Display

·With O2 concentration continuously monitoring funtion

·Optional: a) Et CO2 b) AGSS

Main Unit:

·Working mode: For the closed system, half-closed system and half-open system

·Application: Adult and Pediatric

·Low gas supply alarm: when O2 supply pressure is over low, the machine will arise >

(longer than)  7 seconds audible alarm.

·High pressure limitation: when airway pressure is higher than pre-set figure,the

machine will  automatically start protection   function. The airway pressure will stop

increasing   (not increase any more) to keep patient safe.

·Low pressure protection: when O2 gas supply pressure is lower than 0.1MP.the

machine will automatically cut off N2O supply.

·When power supply fails, audible and visual alarms will arise.The machine will

continuously work by battery.

·O2 Flush: 25L/min~75L/min

·Gas Supply: O2: 0.28MPa~0.6MPa N2O: 0.28MPa~0.6MPa

·Power supply: AC 220V, 50 Hz Built-in UPS power supply for backup.

Flowmeter:

·O2/ N2O two tubes Flowmeter (0~1L/min 1~10L/min)

·Linkage of O2 and N2O, keep oxygen concentration over 25%

Anesthesia Ventilator:

·Bellow for Adult 1 piece, Bellow for Pediatric 1 piece

·Pneumatically driven and electrically controlled

·Monitoring: under Manual control or Automatic control,Tidal volume(using differential

pressure flow sensor), Frequency, I/E ratio, Peak airway pressure,Waveform(Pressure-time),

Waveform(Flow-time)

·Respiratory modes: IPPV, SIGH, SIMV/f/2, SIPPV, PEEP(0.5kPa ~ 2 kPa) Optional: EtCO2

·Tidal volume:0,50~ 1500mL( with tidal volume preset function)

·Respiratory frequency:2~ 99bpm

·I:E:5:1 ~ 1:8 (adjustable)

·PTRiG: -2 ~ OkPa

·High pressure limitation:2~ 6kPa  Low pressure limitation:0~ 2kPa

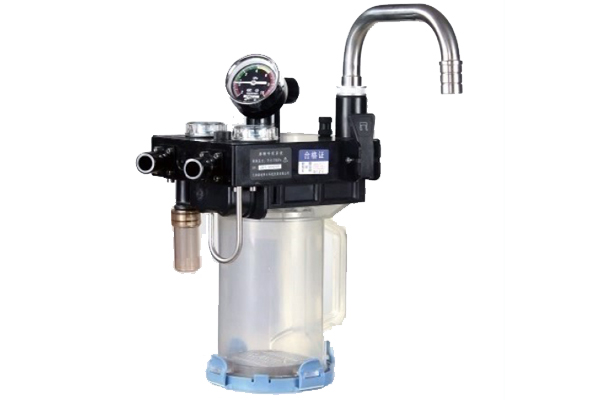

Circle Absorber:

·New launching integrated CO2 Absorber, could be high temperature 134°C sterilized.

·Cup type Canister, around 2.5L, easily and fast change soda lime.

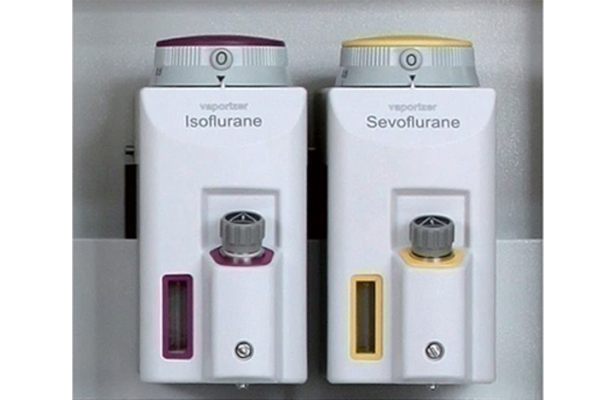

Anesthesia Vaporizer:

·High precise Anesthesia Vaporizer (Enflurane, Halothane, Isoflurane, Sevoflurane)

·Sevoflurane adjustment scope: 0~ 8% Vol;

Enflurane, Halothane, Isoflurane adjustment scope: 0~ 5%Vol

·Automatic compensation of flow, temperature and pressure

·Self-lock and interlock

·Volume:>250mL
