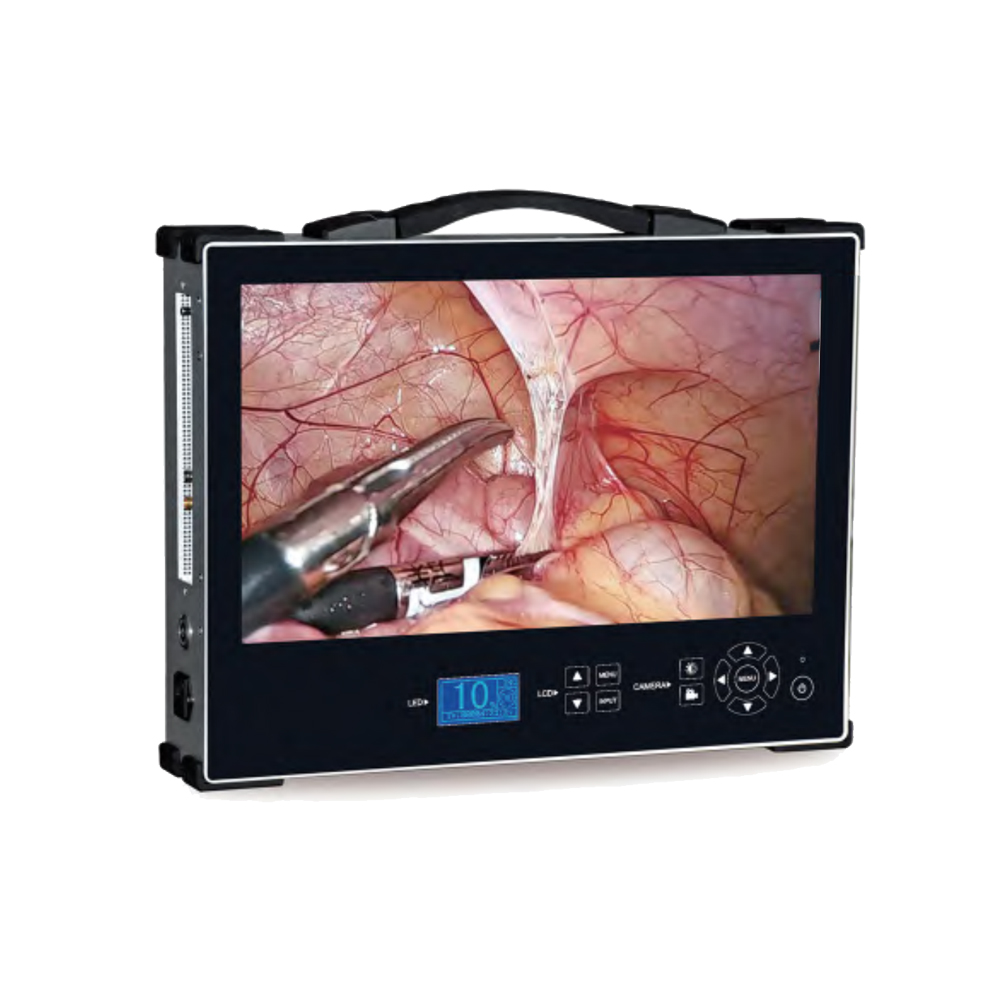

HD All in One Endoscope Camera RK-370

hot

Application Department

General Practice

Leave A MessageLive Chat

Product Introduction

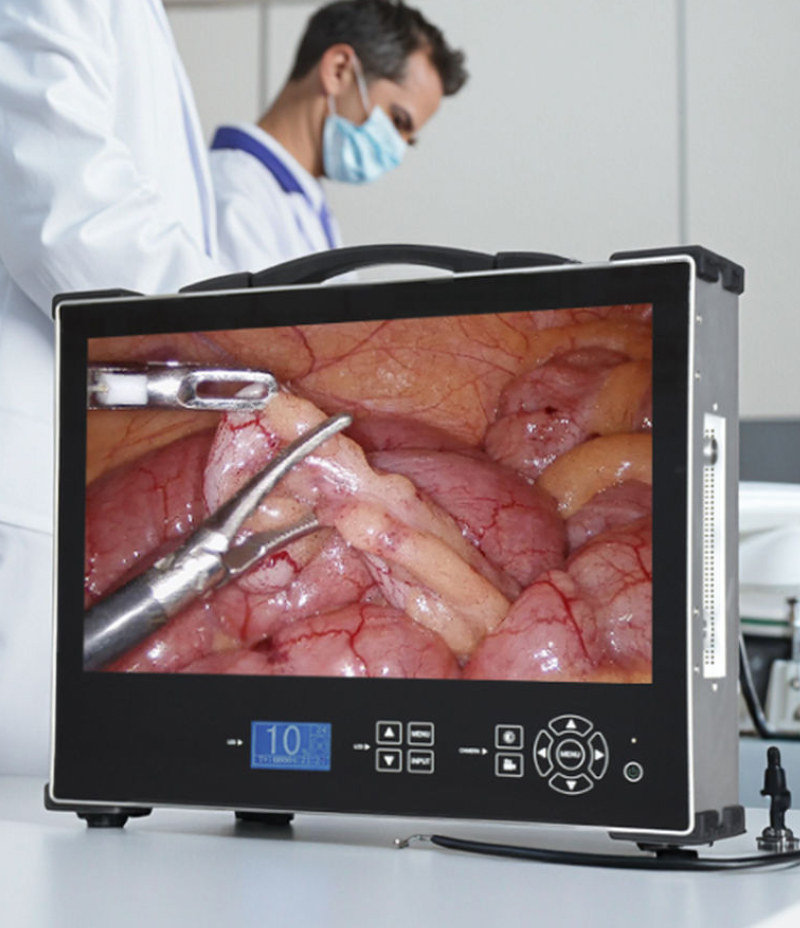

The portable medical endoscope system is a miniaturized, portable medical imaging device primarily used for clinical examinations, surgical assistance, or bedside diagnosis and treatment.



Advantages:

. Using 1/1.8-inch CMOS, resolution: 1920*1080P;

· manual white balance, one-click freeze, one-click video recording

with USB storage, photo taking, storage, video recording and video storage;

· Imported American LED lamp beads with 100 watts light source.;

· Monitor: SONY LCD panel 24 inches, high-definition display, true color reproduction.

· Languages: Chinese, English, Russian, Spanish can be switched;

.Output interfaces: BNC, SDI, DVI, VGA, HDMI, USB.


features:

Screen Size: Equipped with a 21-inch,24-inch,27-inch high-definition display, providing clear images for easy observation.

Portability: Lightweight and portable, with wheels or a handle, allowing for rapid movement between different departments, operating rooms, or patient rooms.

Endoscope Compatibility: Supports connection to various electronic endoscopes (such as laparoscopes, arthroscopes, hysteroscopes, otolaryngoscopes, etc.) to meet the examination needs of different body parts.

Function Integration: Typically includes image acquisition, video recording, storage, freeze-frame functionality, and a remote consultation interface.

Application Scenarios: Suitable for primary care hospitals, emergency rooms, mobile healthcare, teaching demonstrations, and diagnostic and treatment environments without a fixed endoscopy center.


Product Gallery

Product Parameters


Camera module:1/1.8-inch CMOS
White balance:Manual
Resolution:1920x1080p
Effective pixels:1944 (H)x1200 (V)
Brightness (S/N):Over 50dB (AGC OFF)
Minimum illumination:Color: 0.002Lux Black and White: 0.008Lux
Video output signals:BNC,SDI,DVI,VGA,HDMI,USB
Gain control:Automatic
WDR/BLC OFF/BLC/HLCWDR
Language:Chinese-English-Russian-Spanish (Switchable)
Monitor 21" /24"/27"
Camera connection cable: Handle extension cable 3M
Digital noise reductionSwitch low, medium, highBrightness0-20 adjustable
Power supplyAC220/110V+10%CMOS Power2.5W
Storage temperature-20°C~+50°CWorking temperature/humidity-10°C~45°C20~85%


LED Light source
Light bulbType LED single-chip light bulbPower100W
Luminous flux600lm
Color Temperature3000K~7000K
Intensity≥1600000LxSpectral range400~700nm
Brightness adjustment display screenYesBacklight mode - LCDLCD
Brightness10~100Display screen size73*39mm
Display screen function

Brightness, temperature, and startup time display

Display resolution

128*64
Display screen parameters(Diagonal size: 24")
Pixel characteristicsResolution: 1920*1200, FHDAppearance characteristicsPhysical characteristics: Planarrectangle
Pixel arrangement: RGB vertical stripesAspect ratio: 16:9 (H:V)
BasicInformationDisplay brightness: 450cd/mf (Typ.)Color performance
Color temperature: 6485K
Contrast: 600:1 (Typ.)Support color:262K (6-bit)
